Highlights

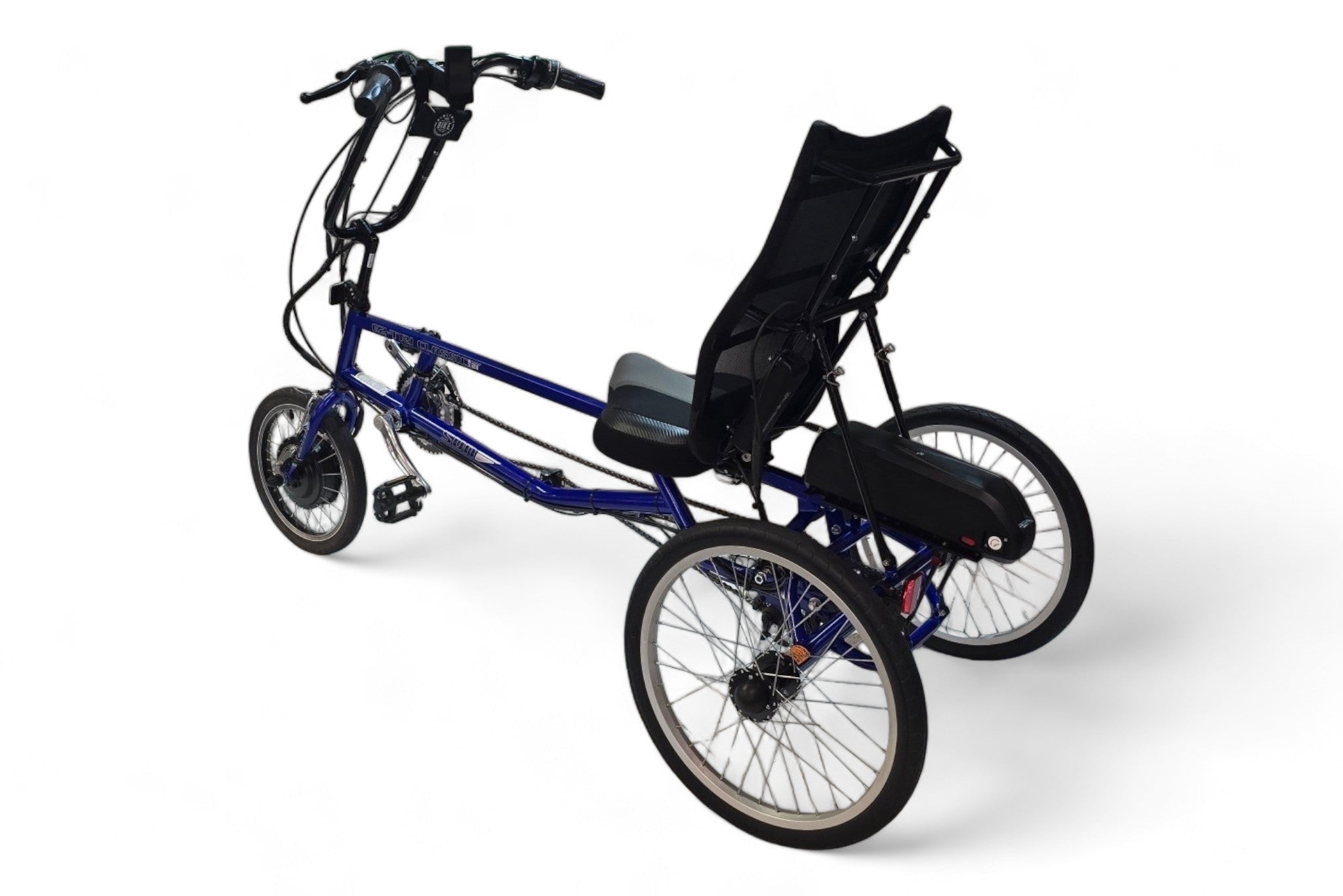

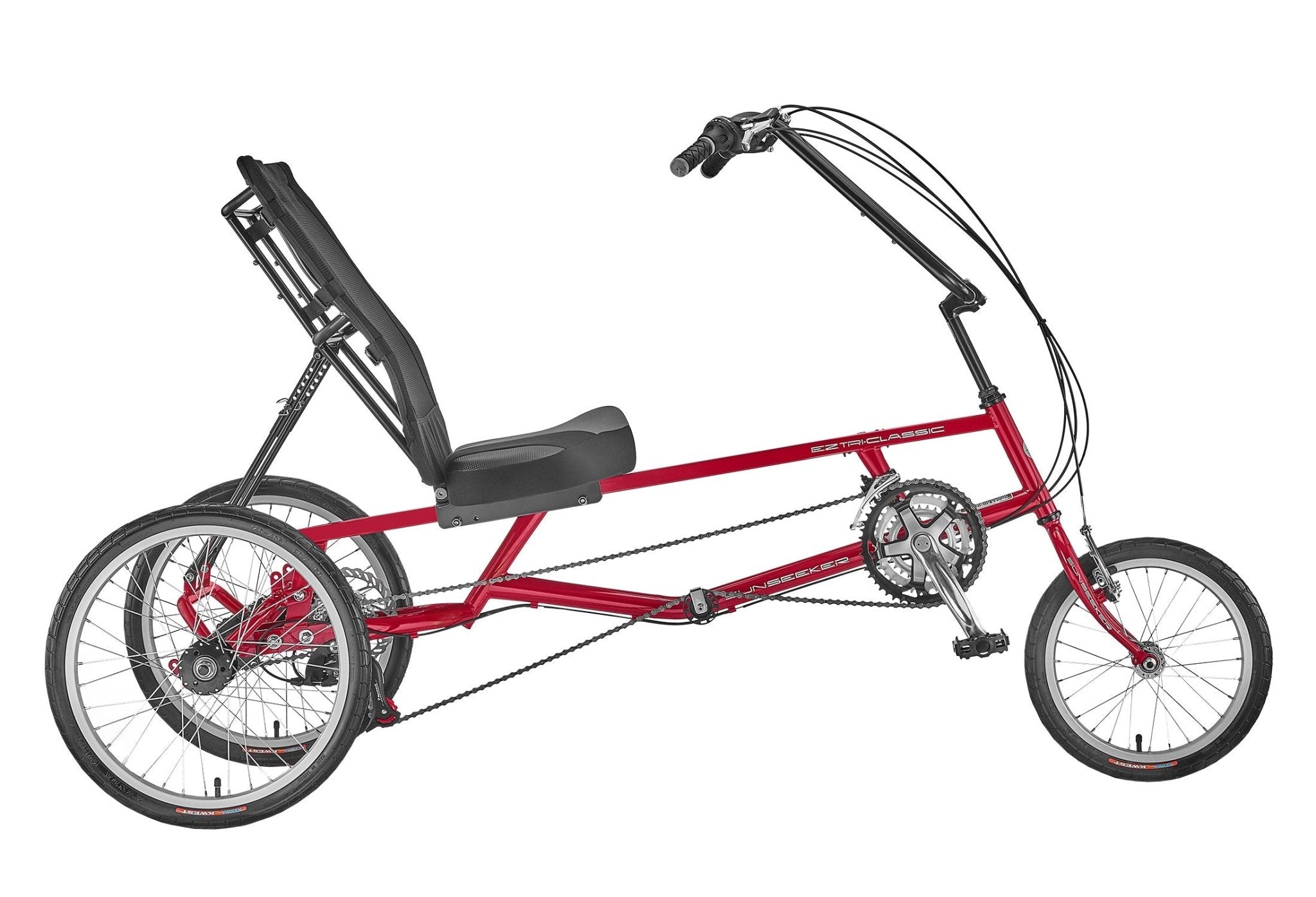

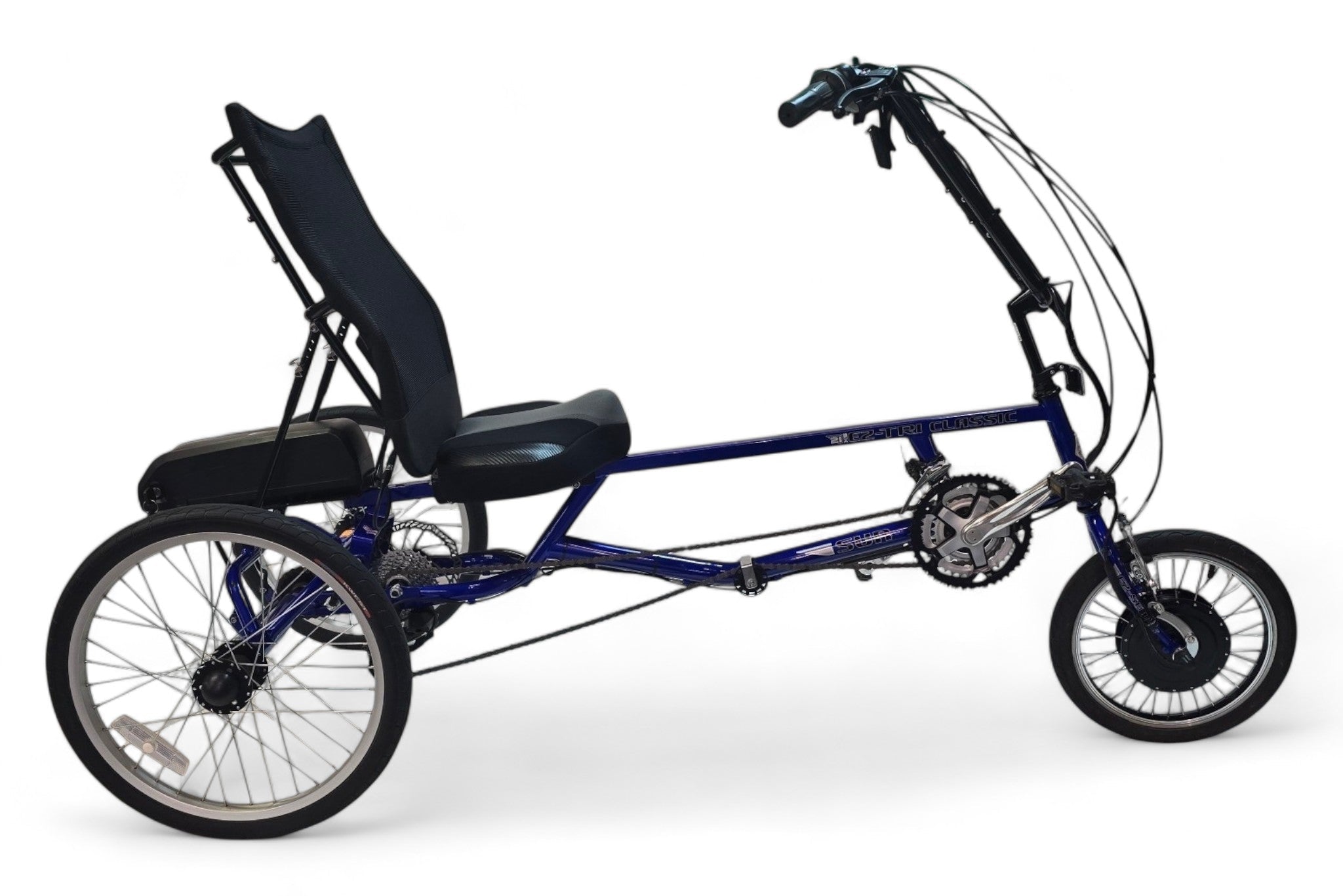

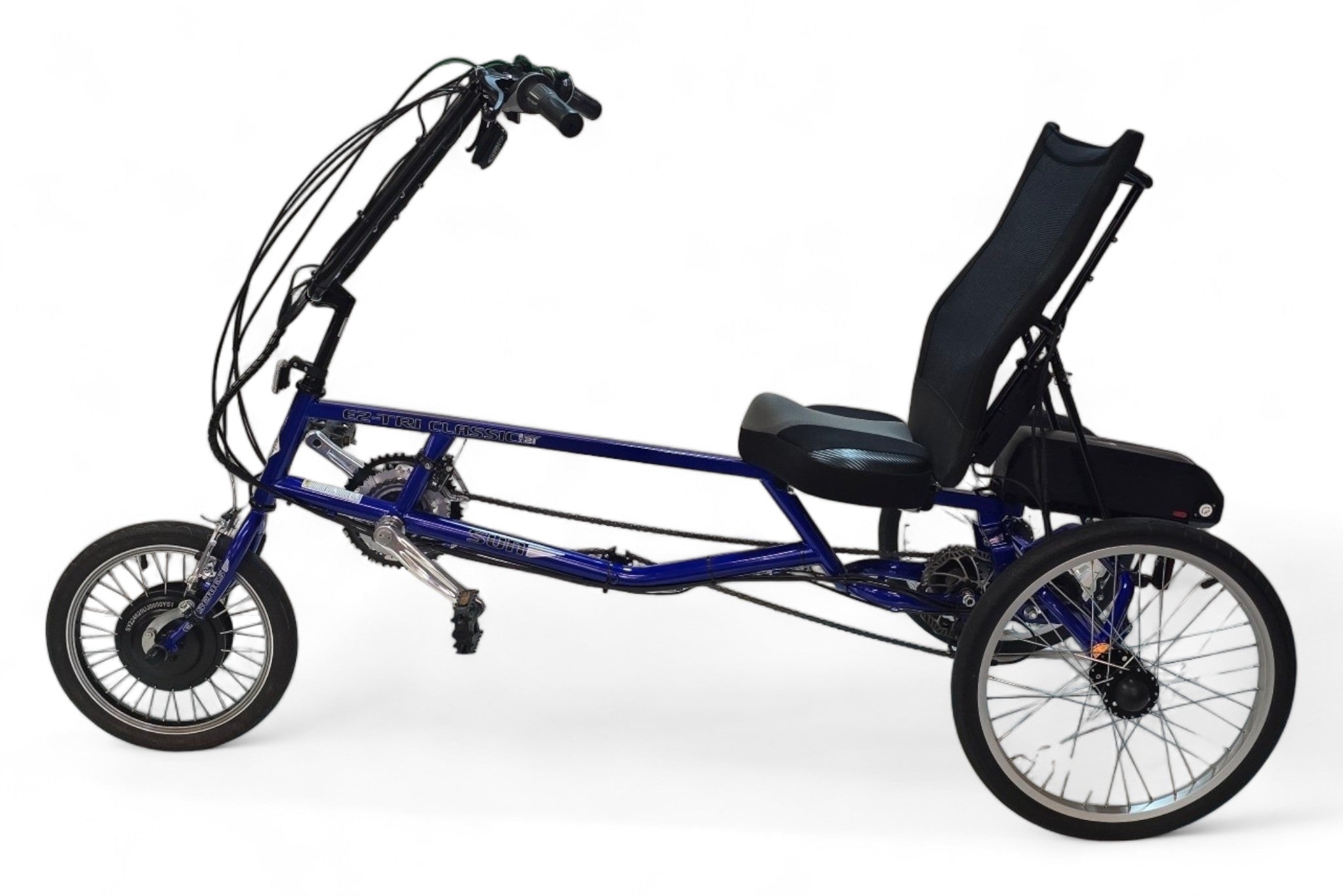

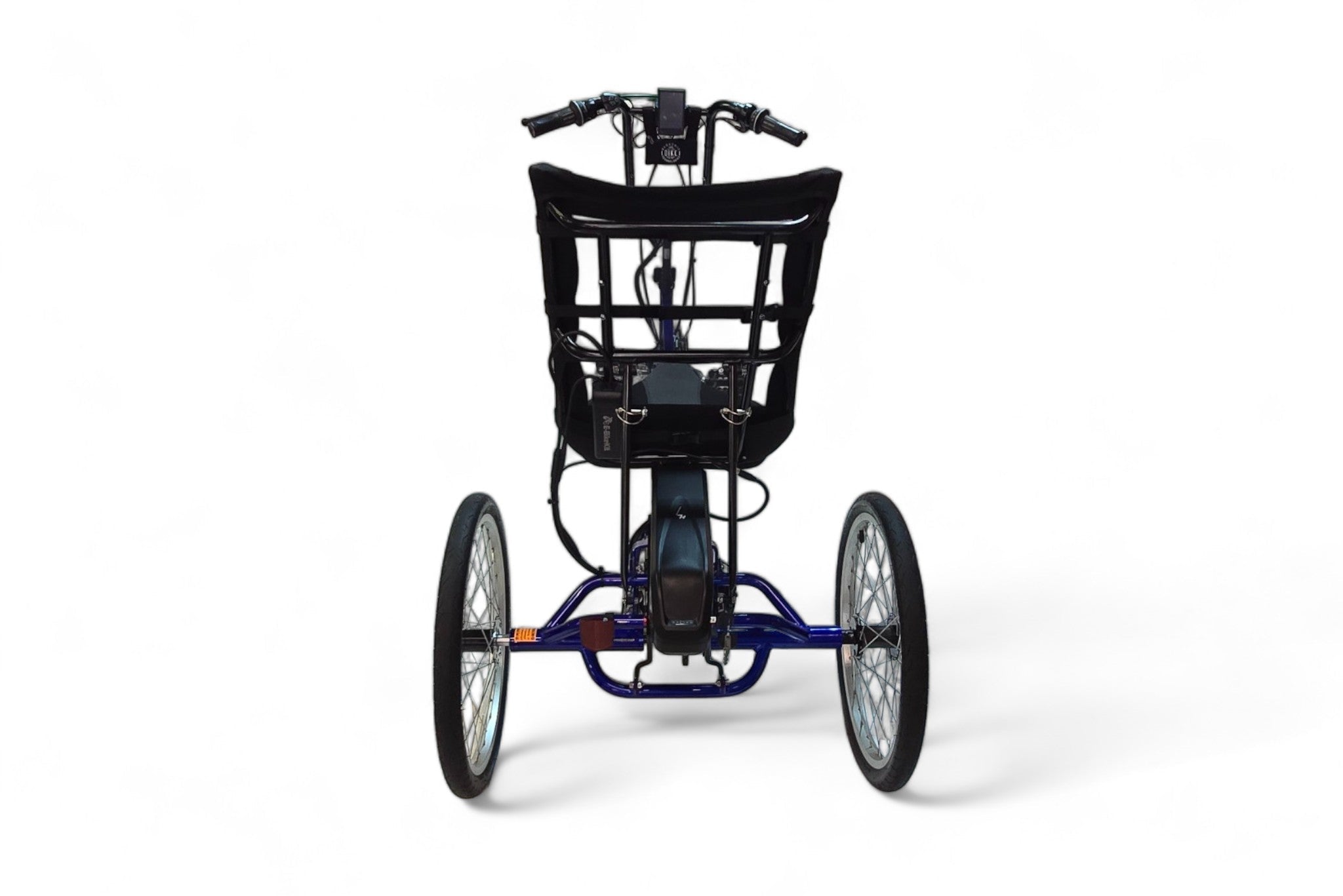

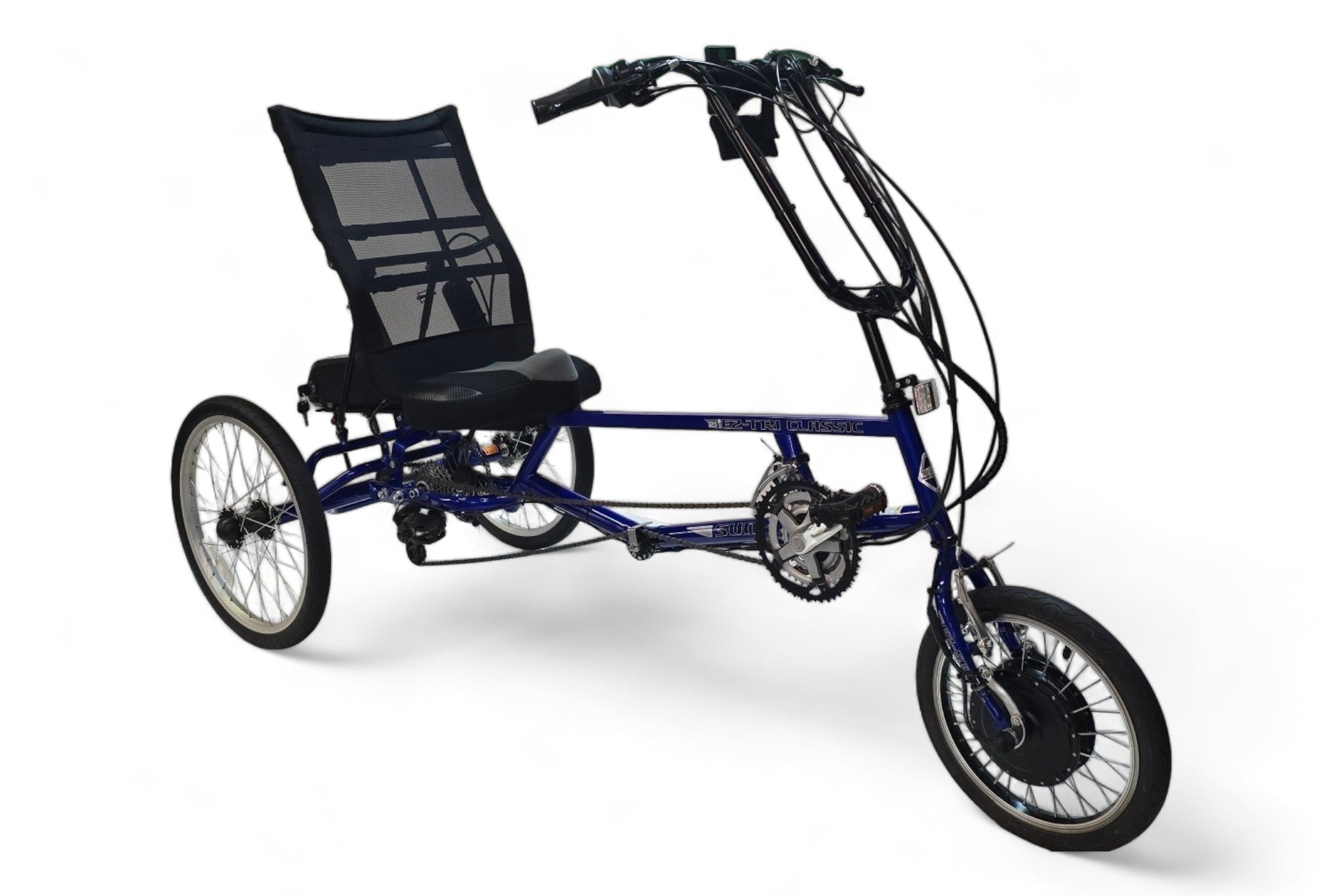

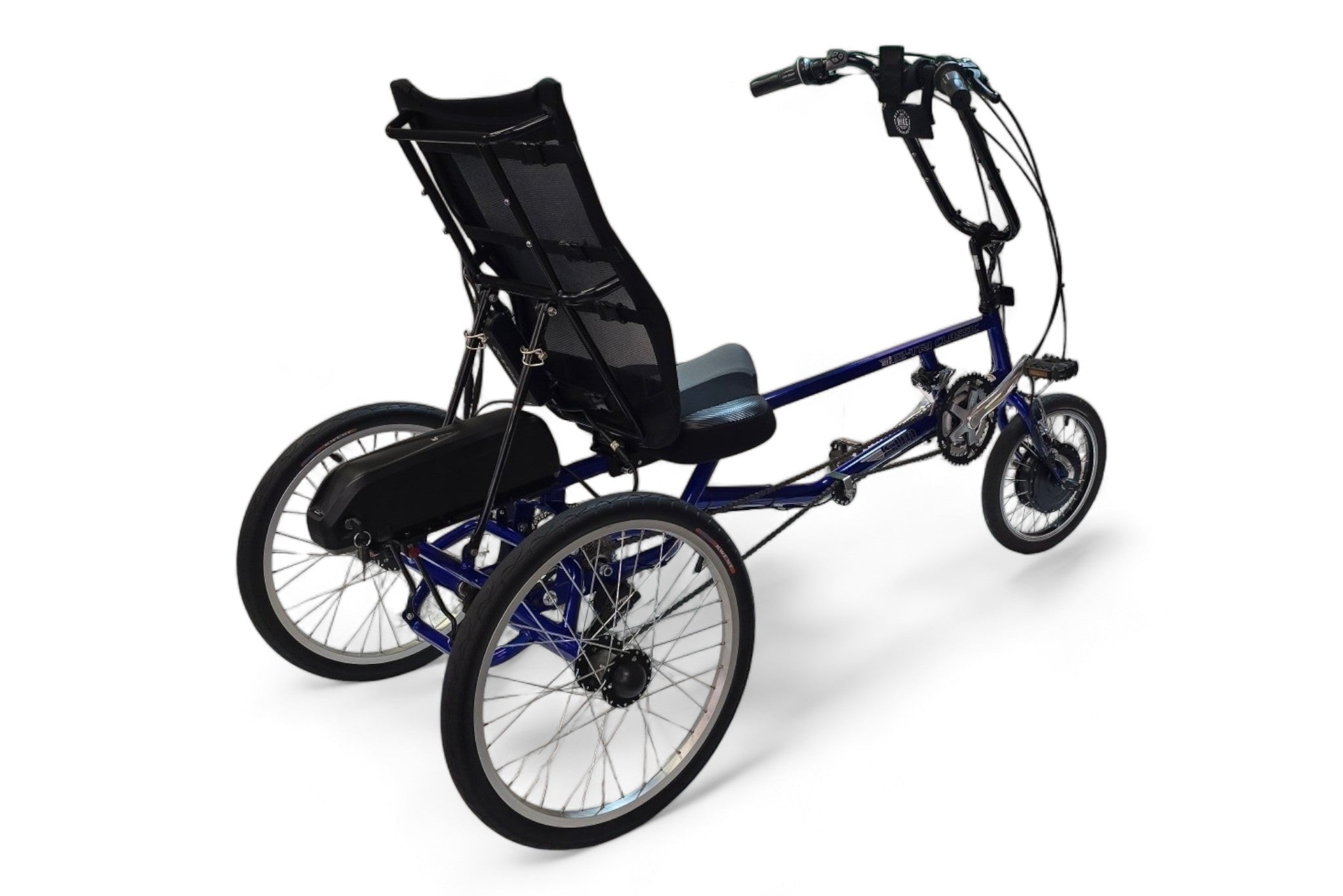

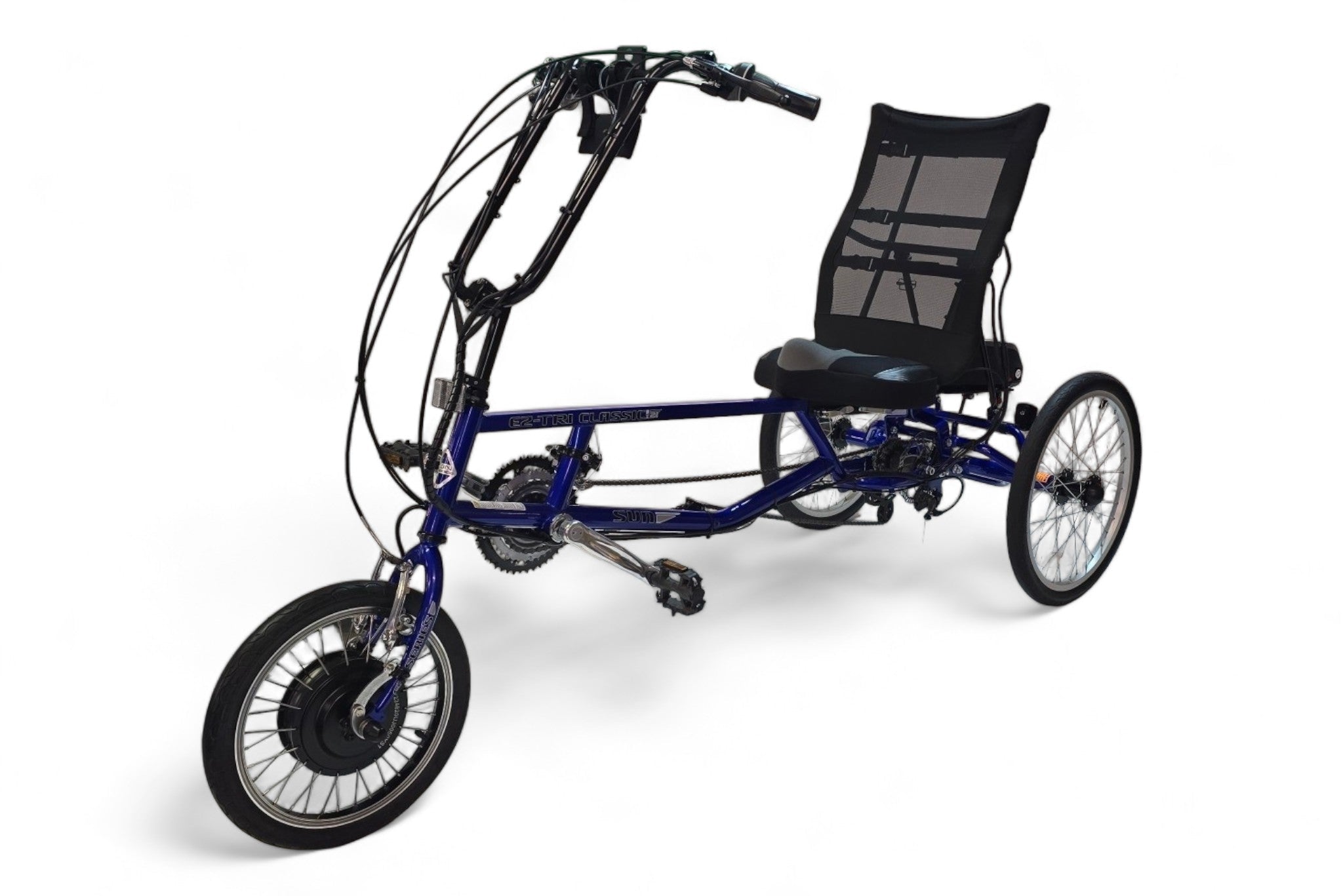

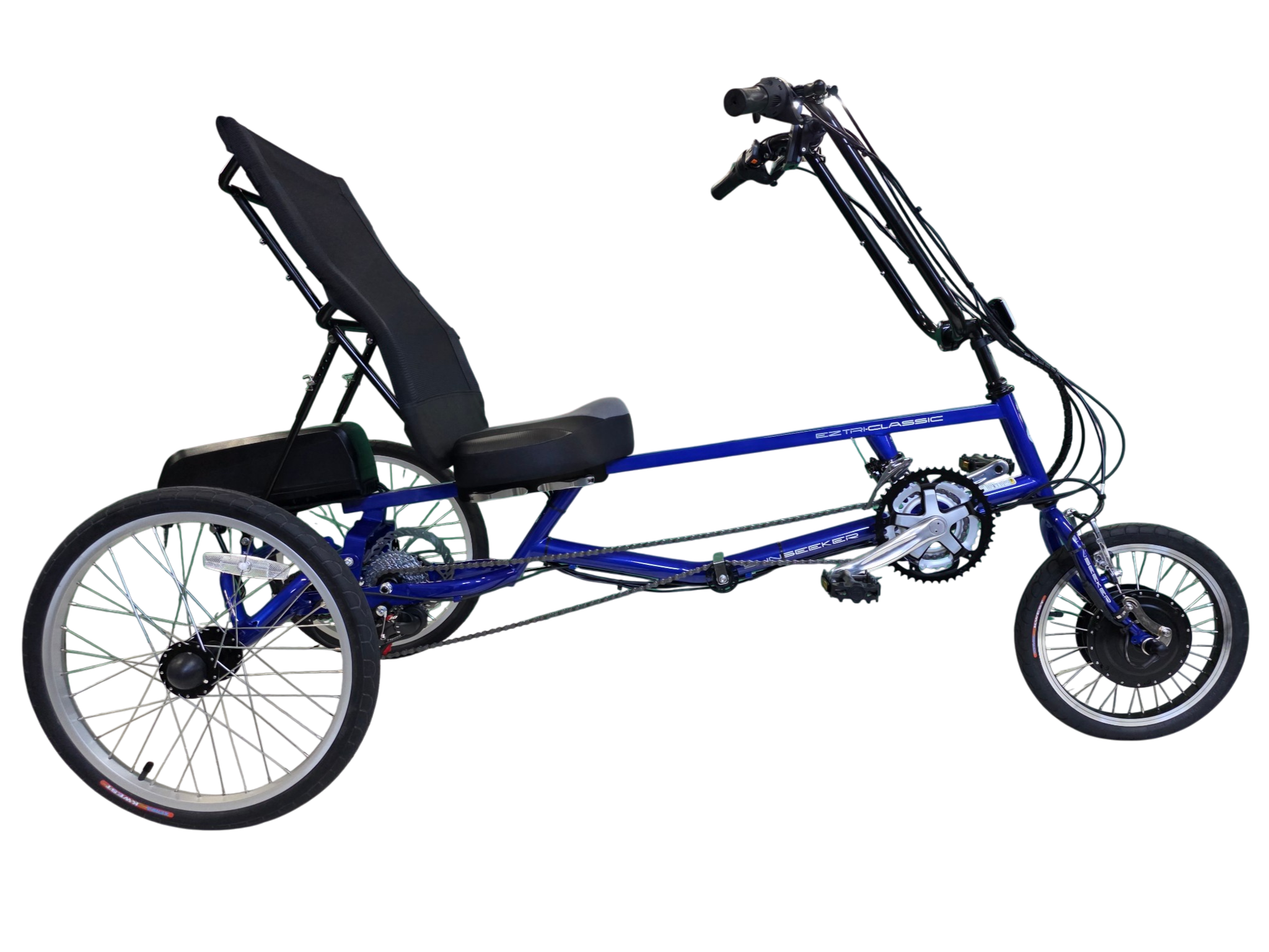

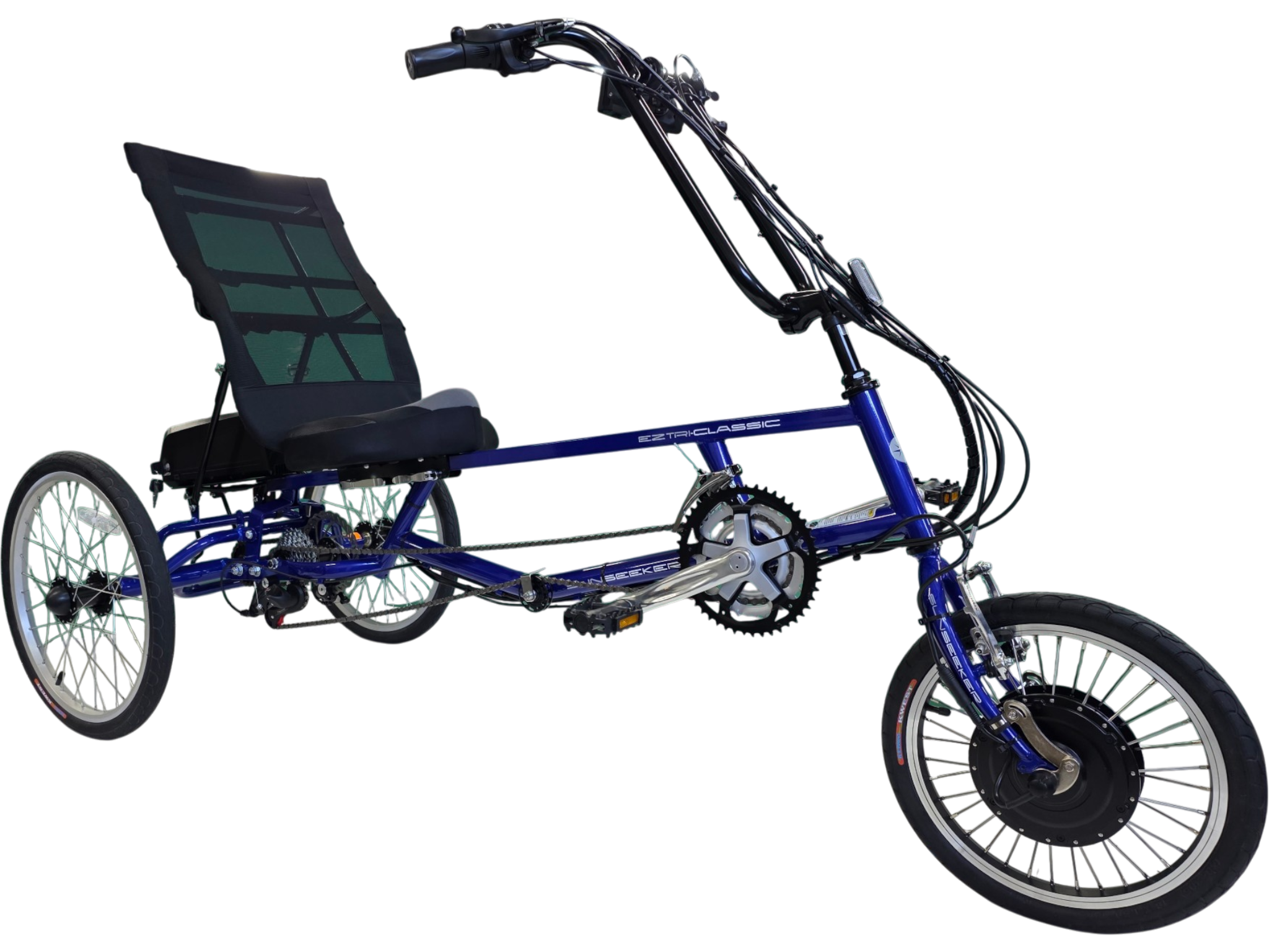

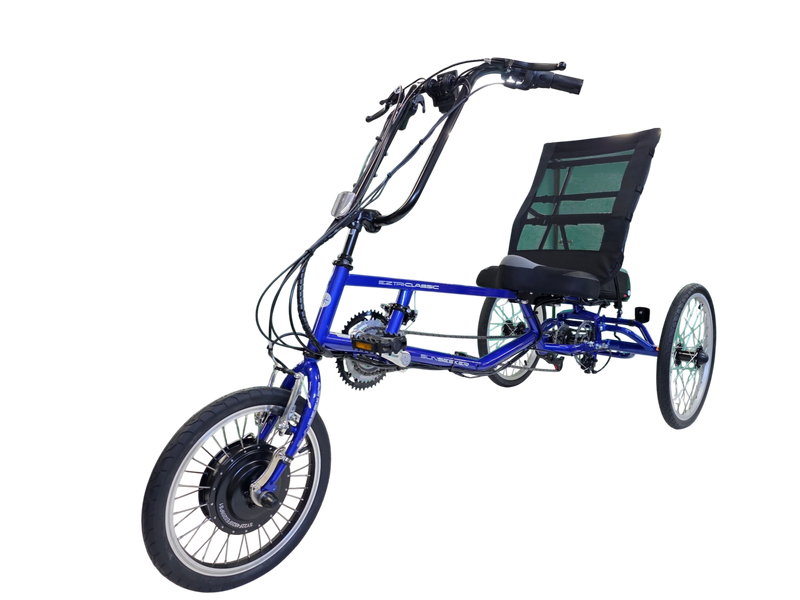

Name: EZ Tri-Classic Electric Trike
Brand: SUN and Electric Trike LLC
Price: 3012.0 USD
Availability: InStock

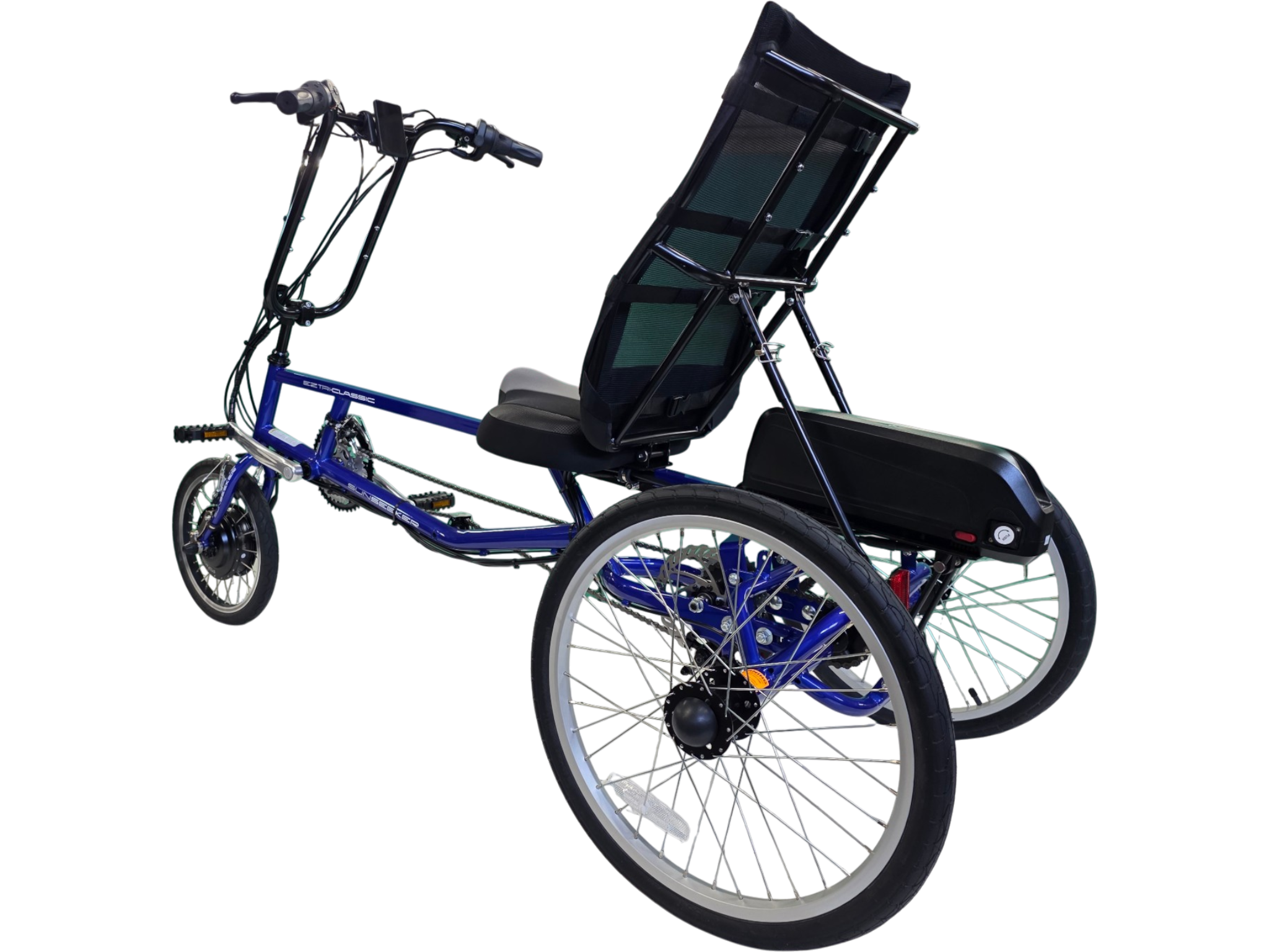

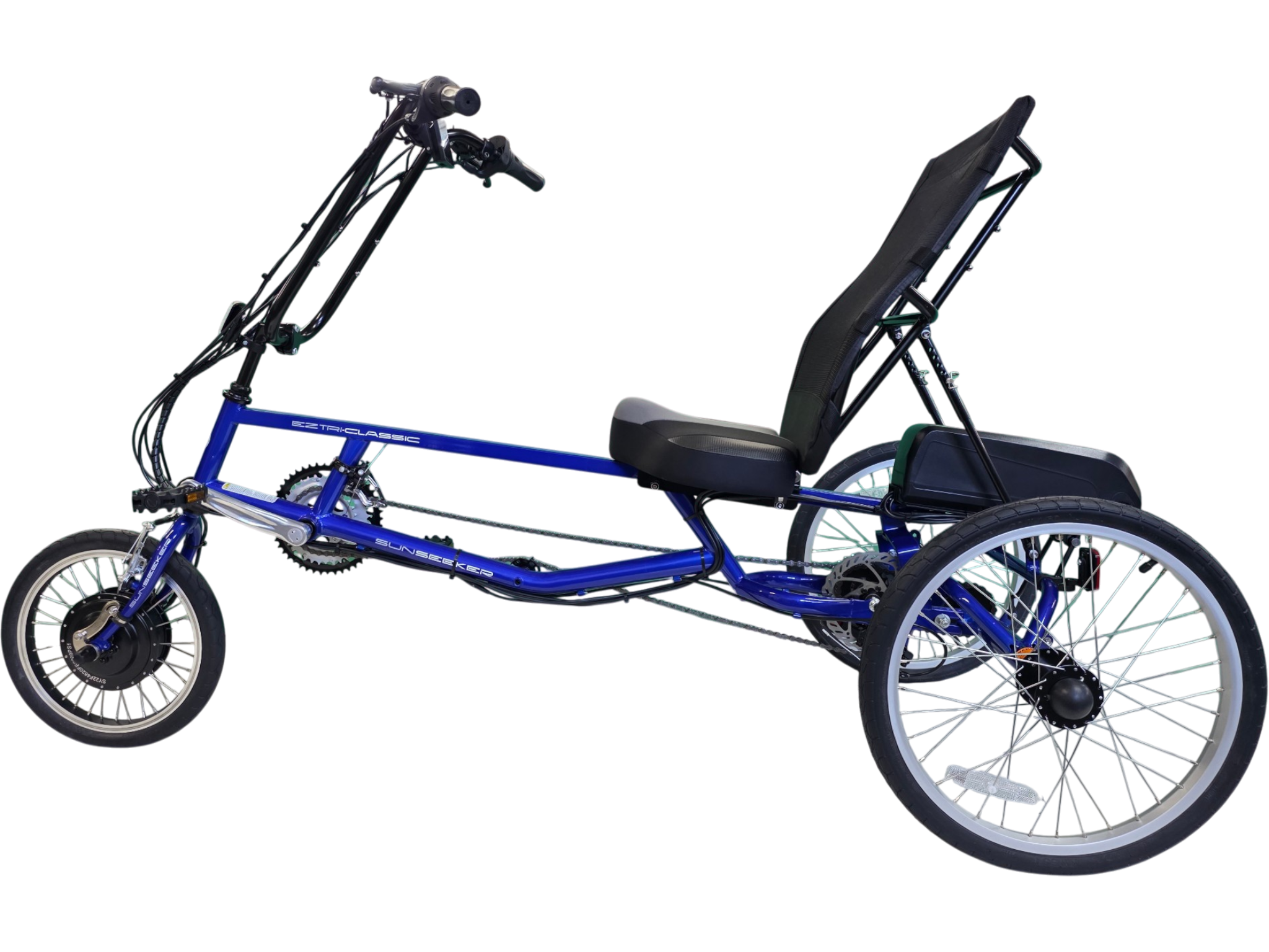

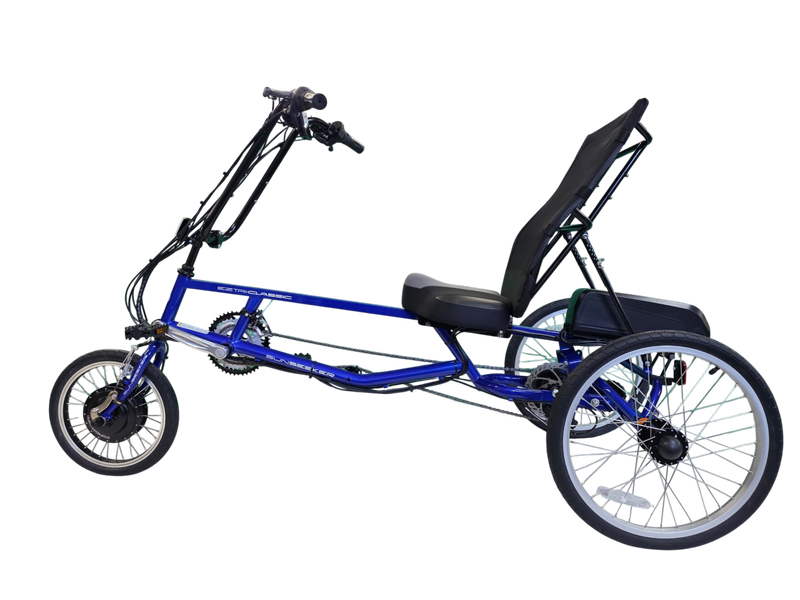

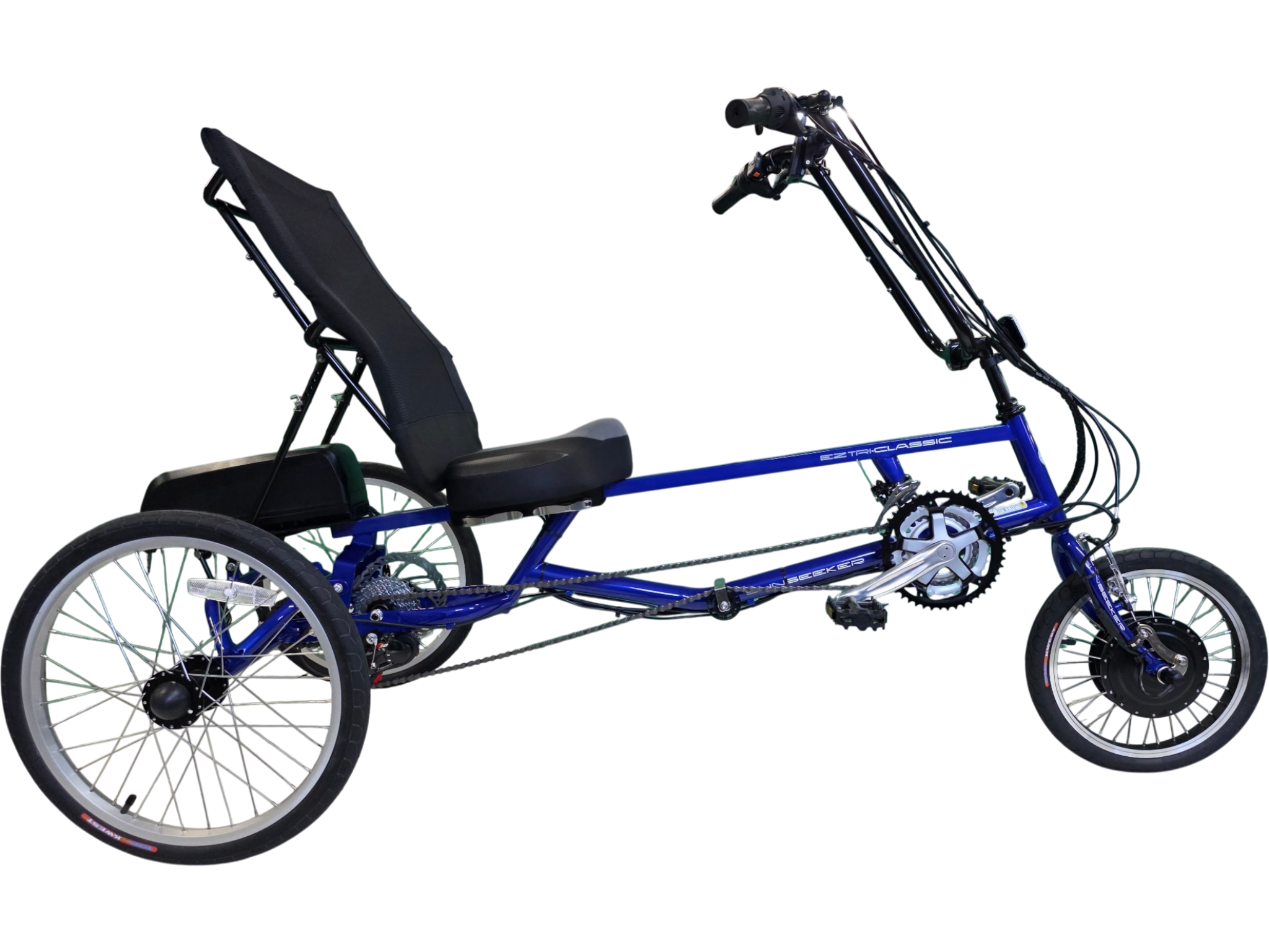

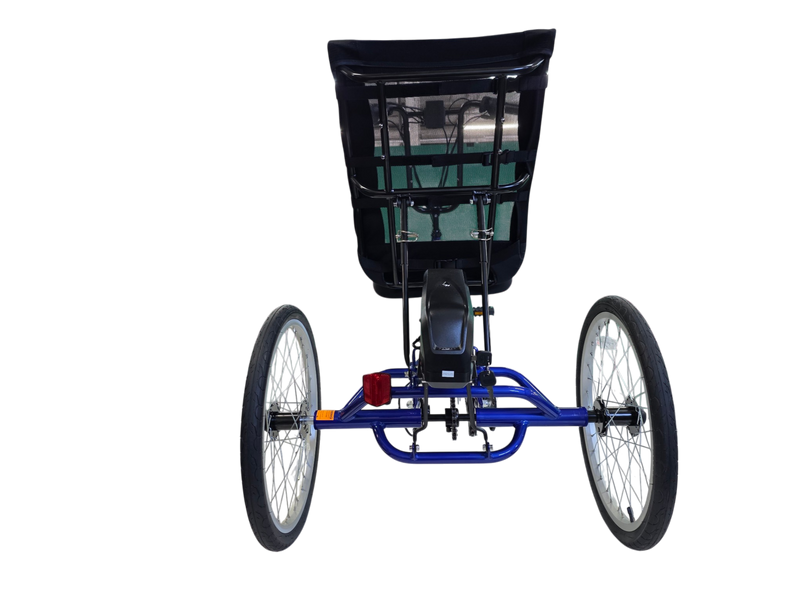

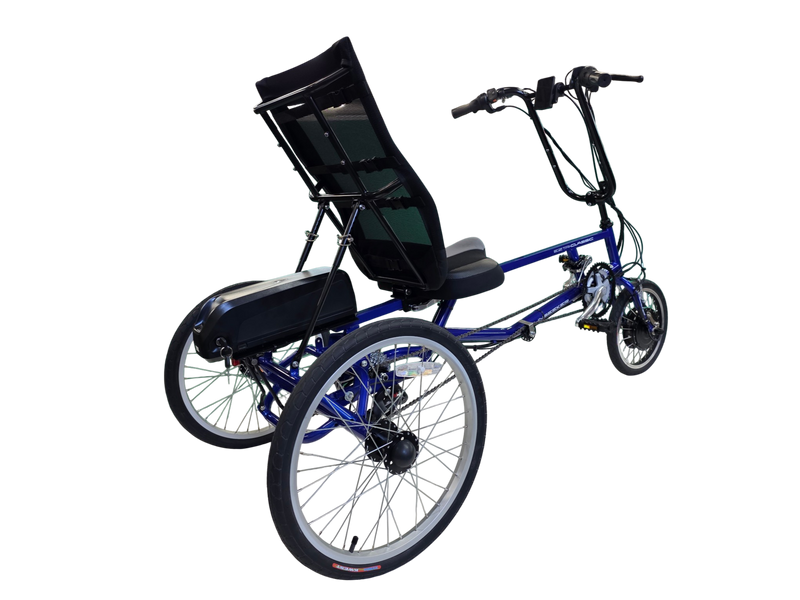

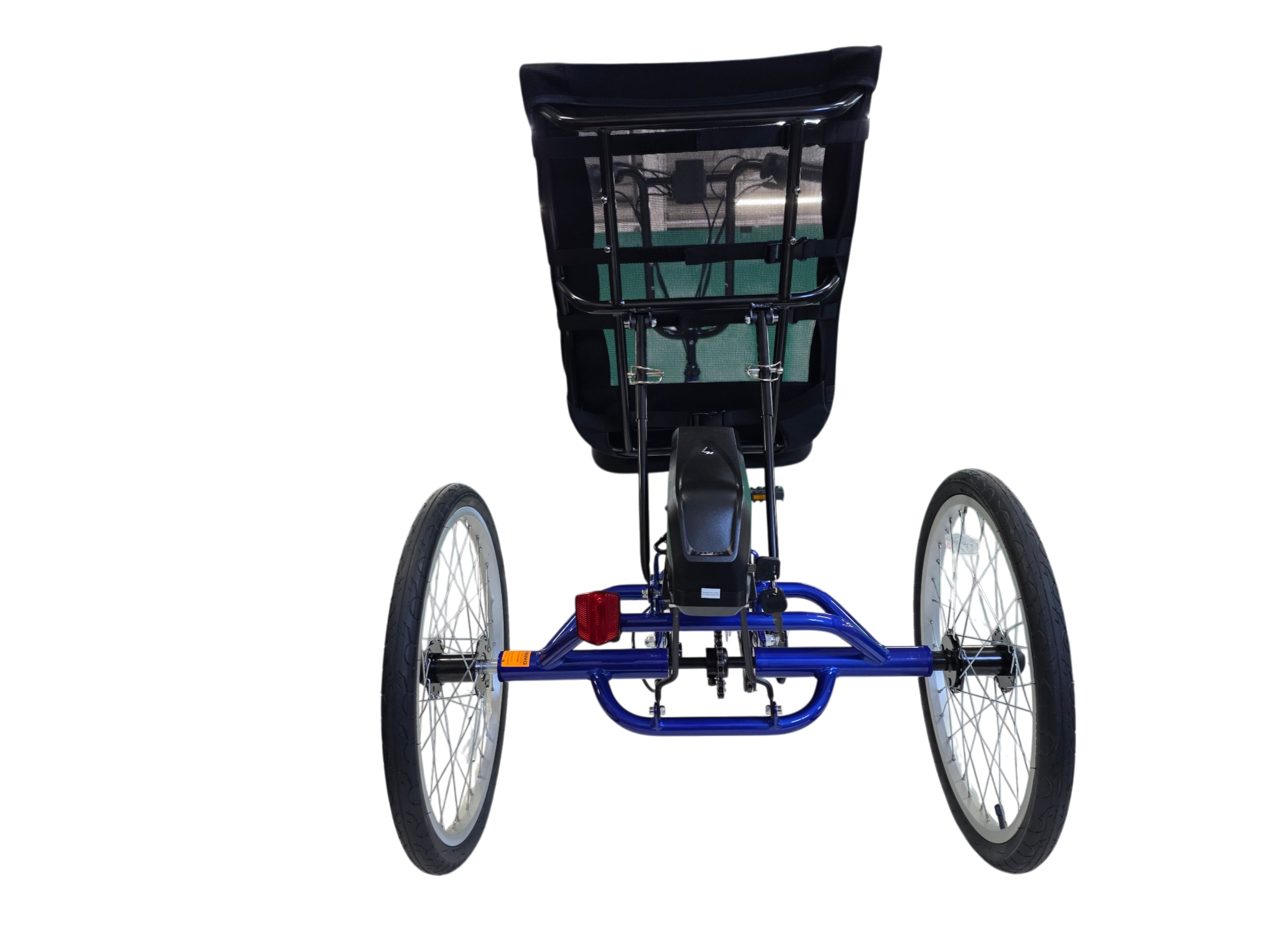

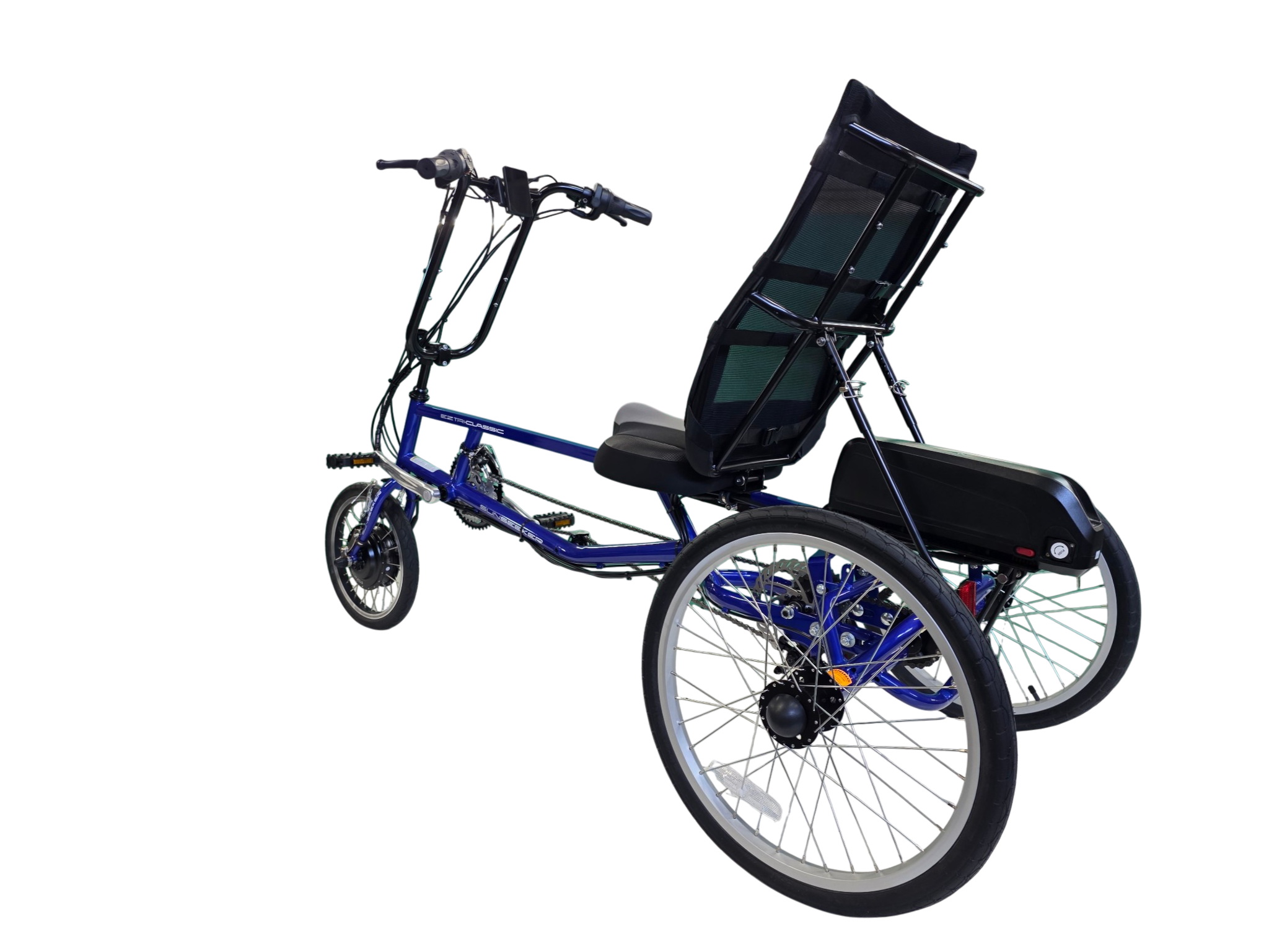

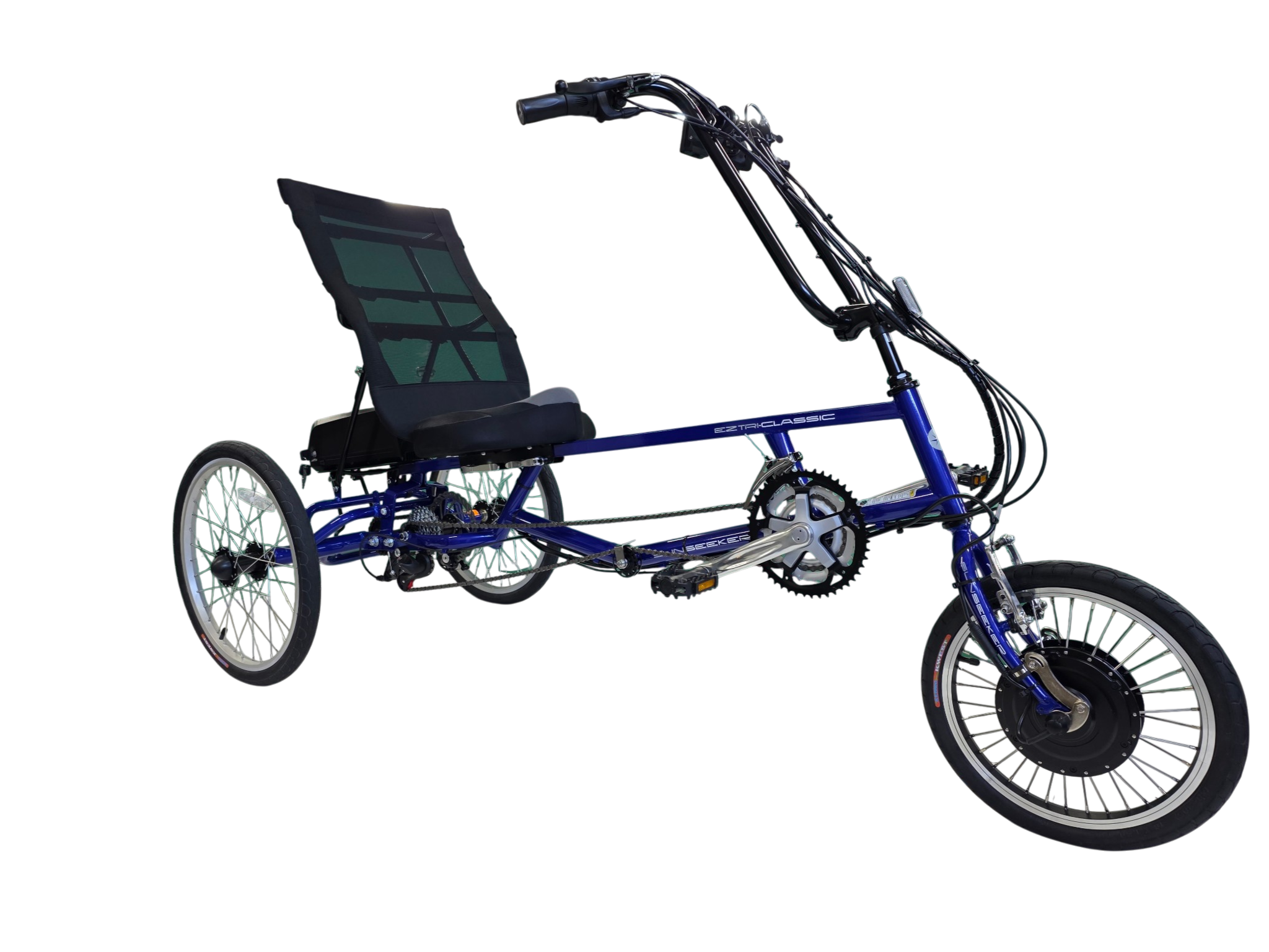

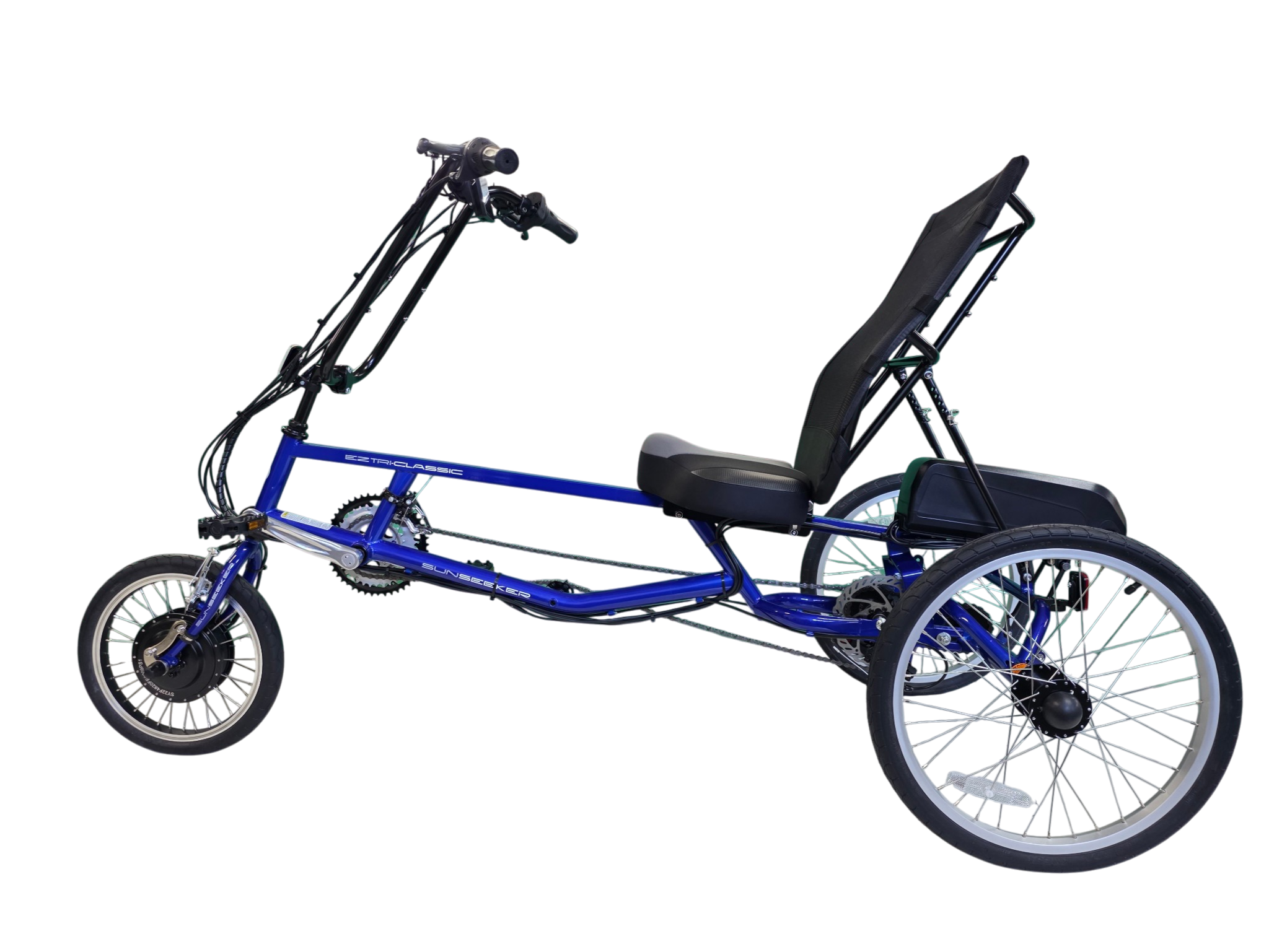

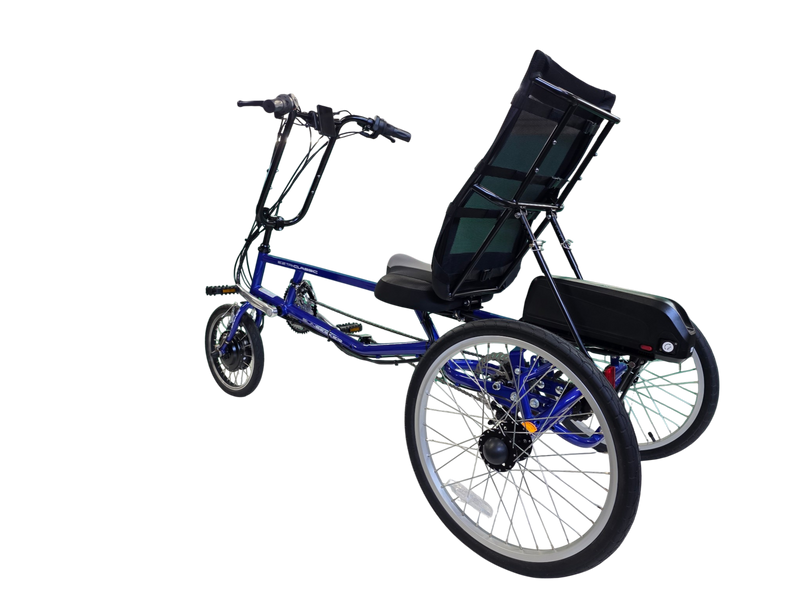

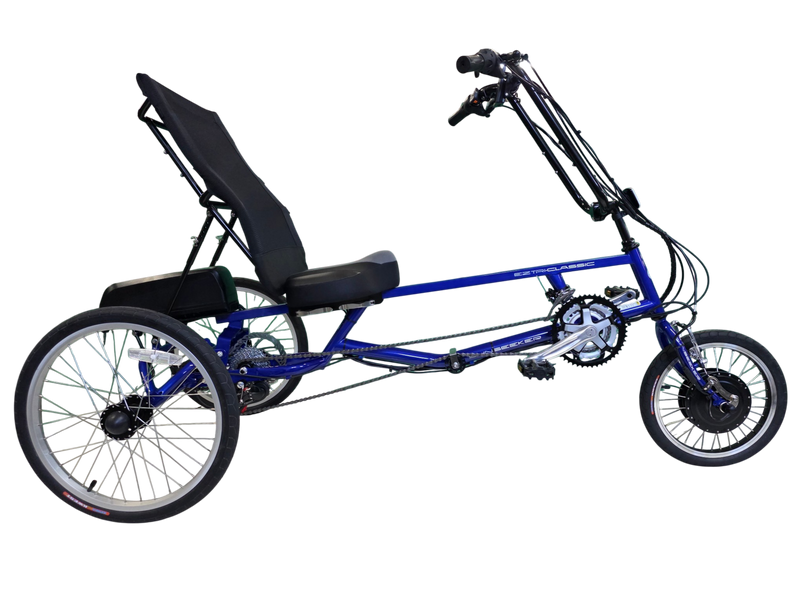

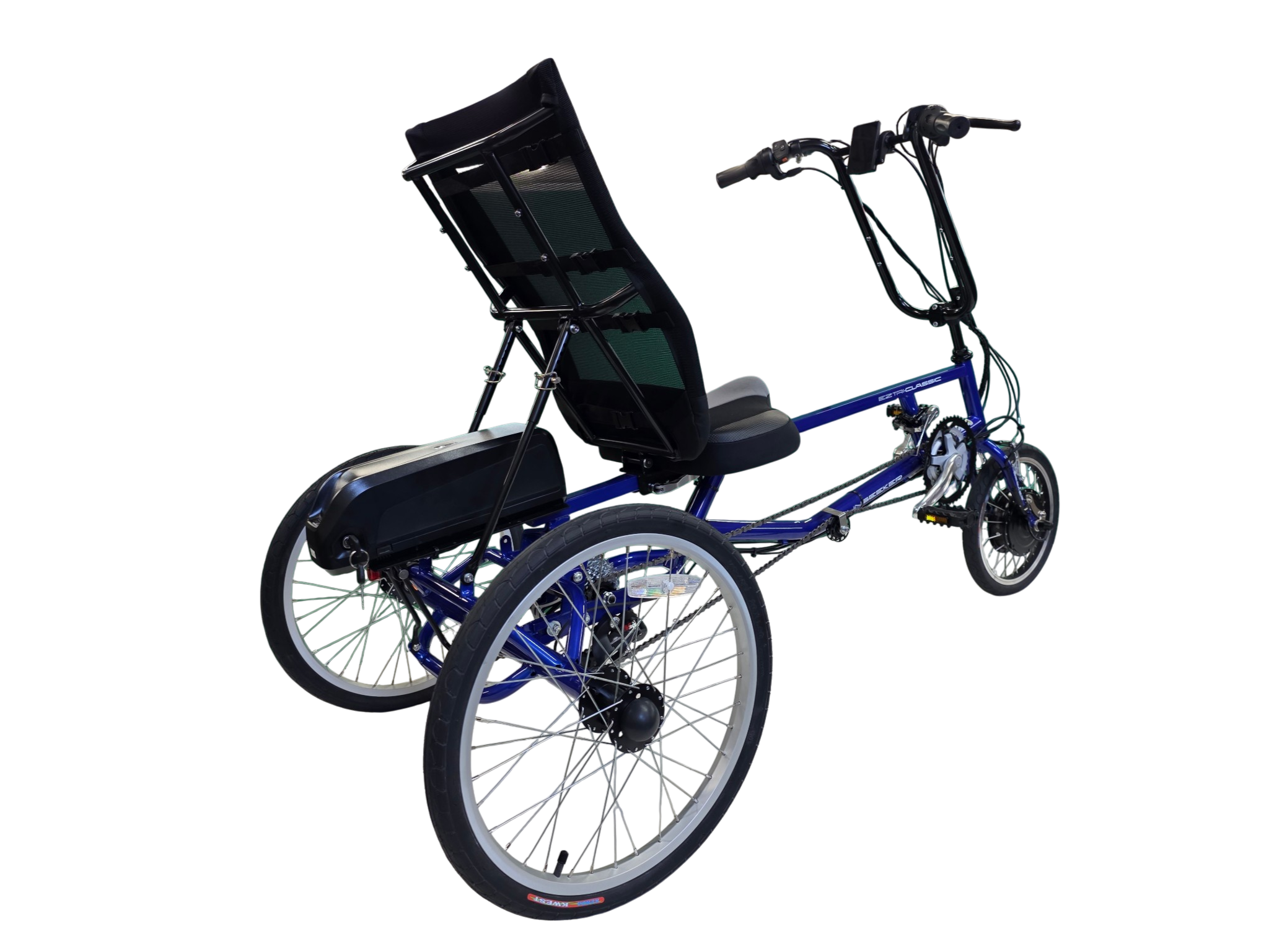

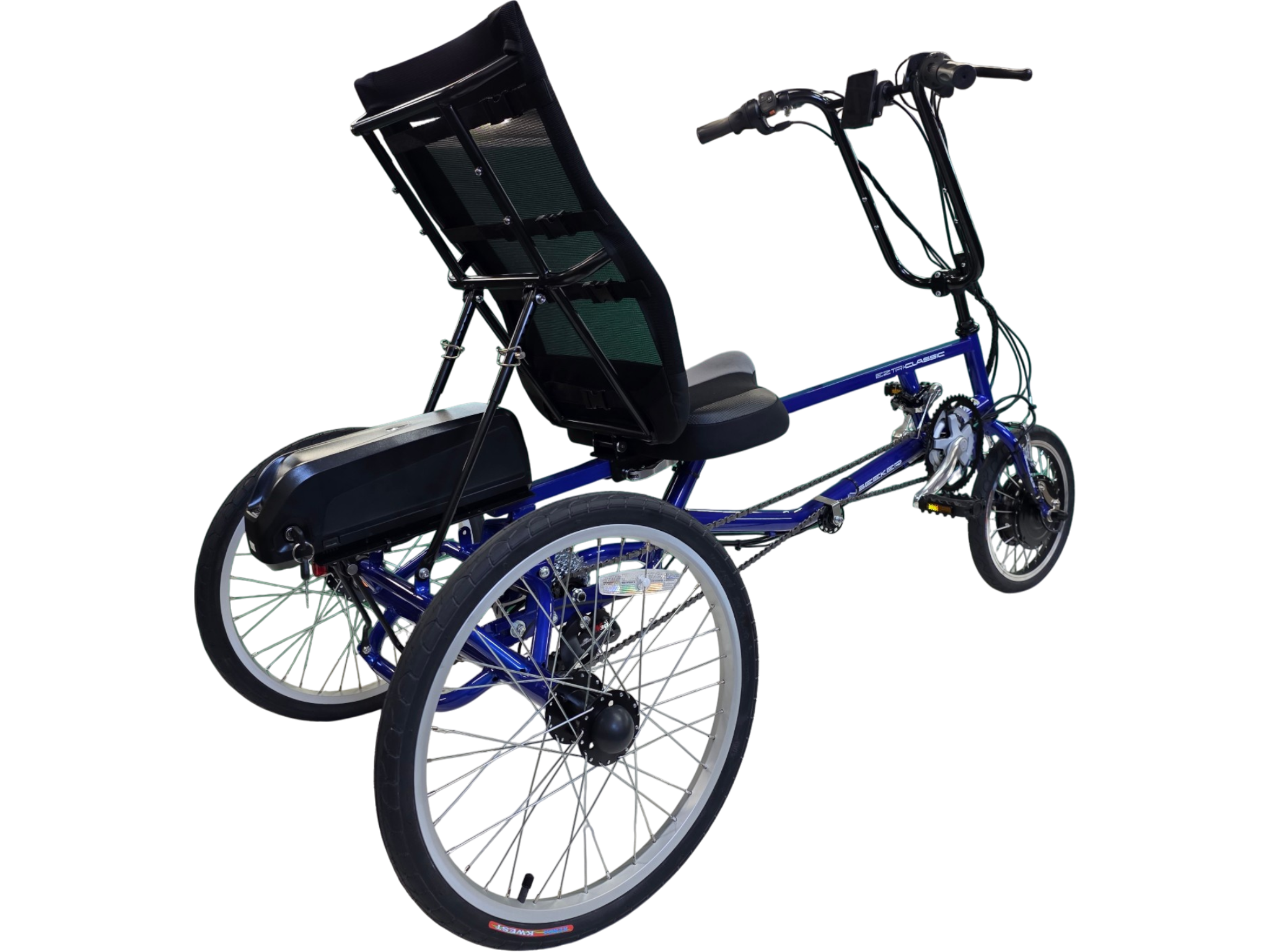

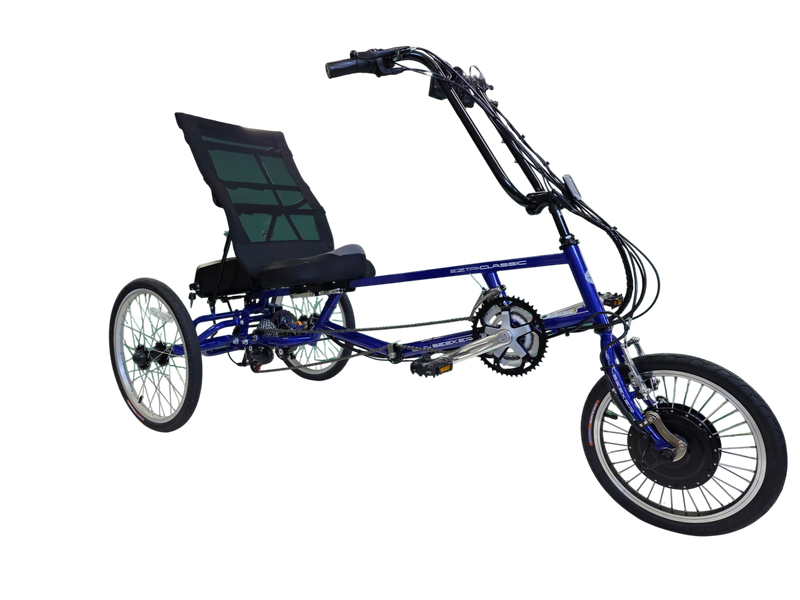

Experience the pinnacle of leisure and performance with the Electric EZ-TriClassic SX recumbent trike. This innovative trike redefines the joy of cycling with its unmatched blend of comfort, stability, and versatility.

Transitioning from a regular recumbent to a trike has never been smoother. The EZ-TriClassic SX combines the ergonomic comfort and mechanical advantage of a recumbent with the enhanced stability and confidence of a trike, ensuring an unparalleled riding experience.

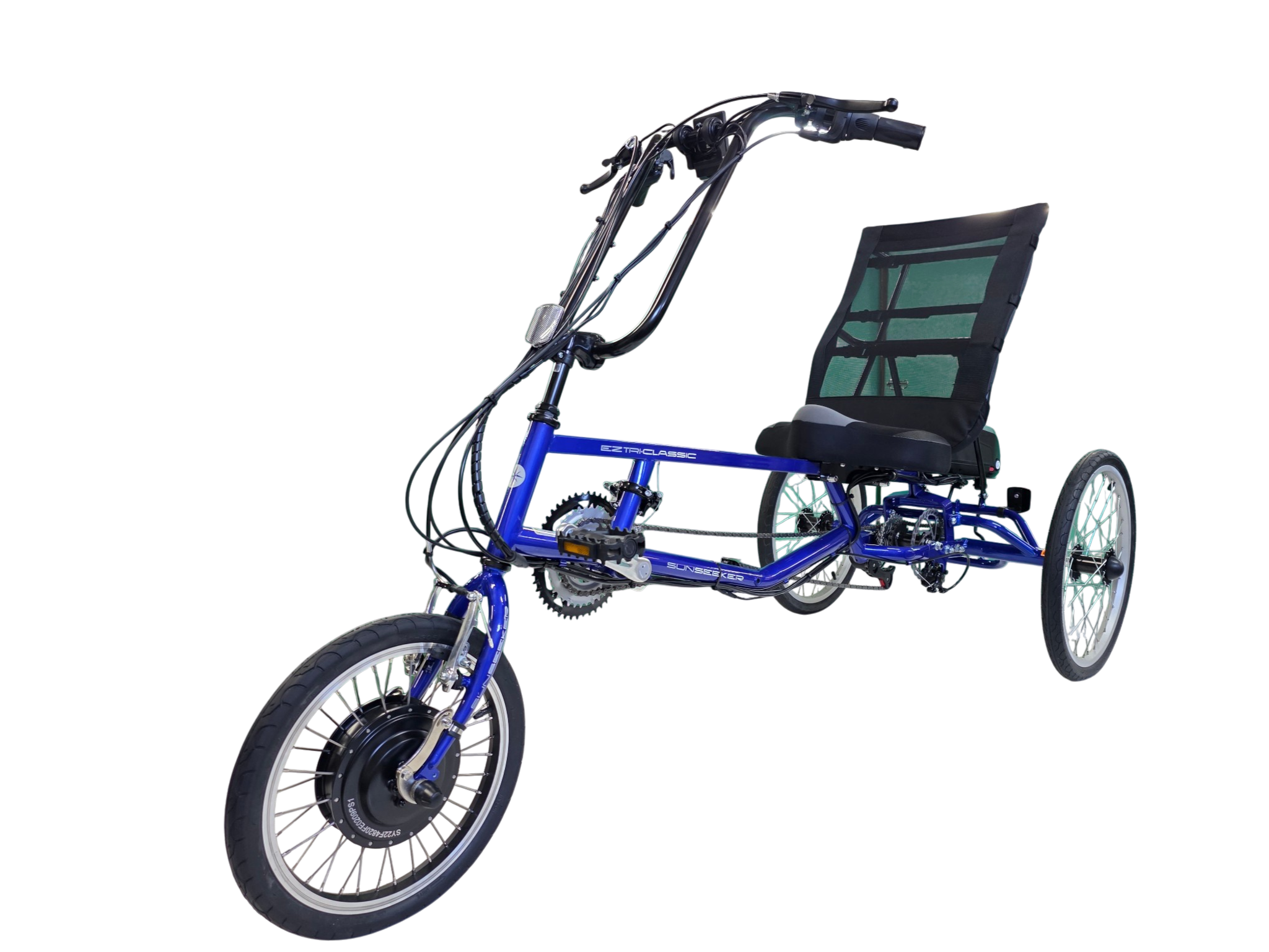

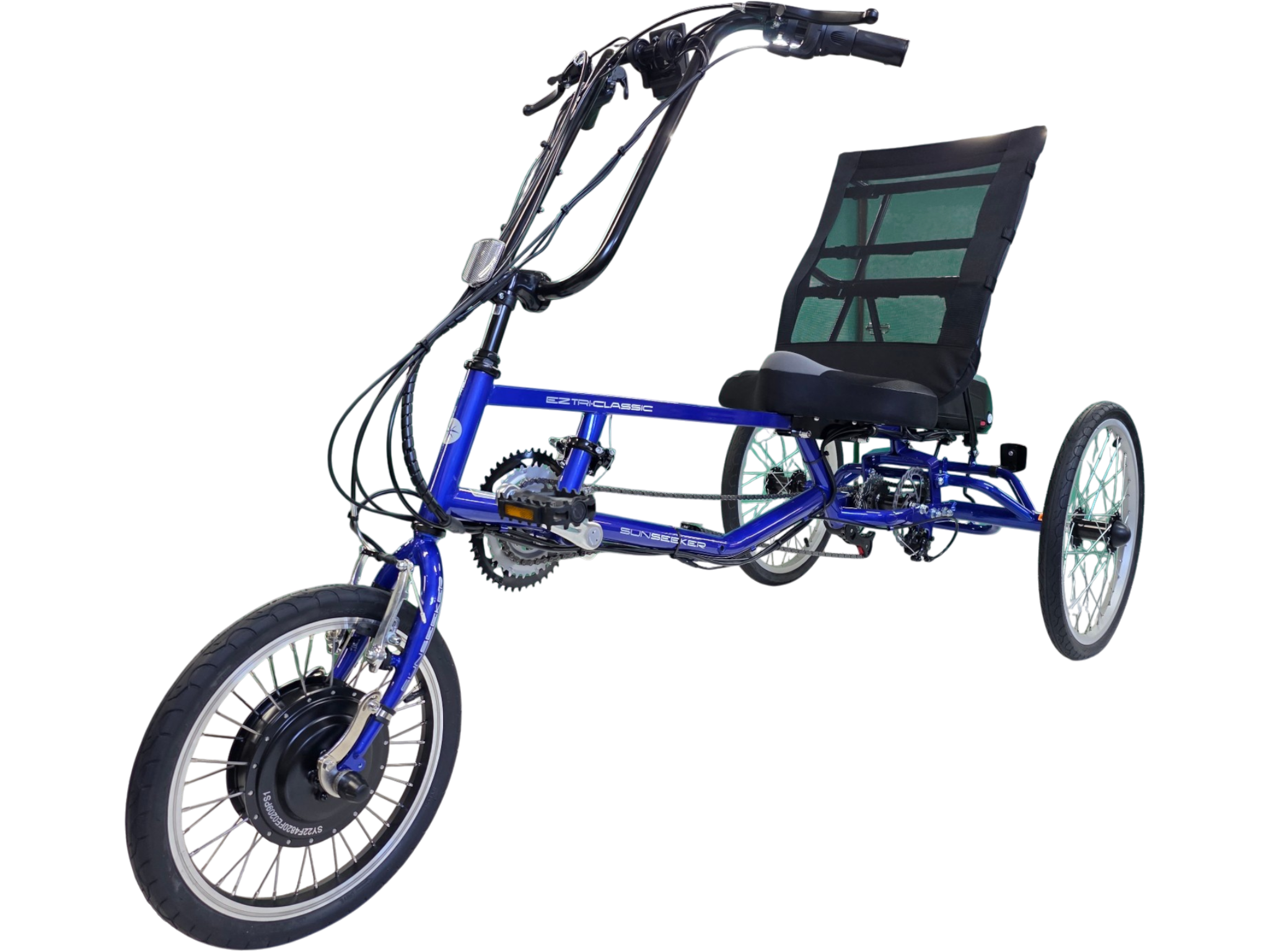

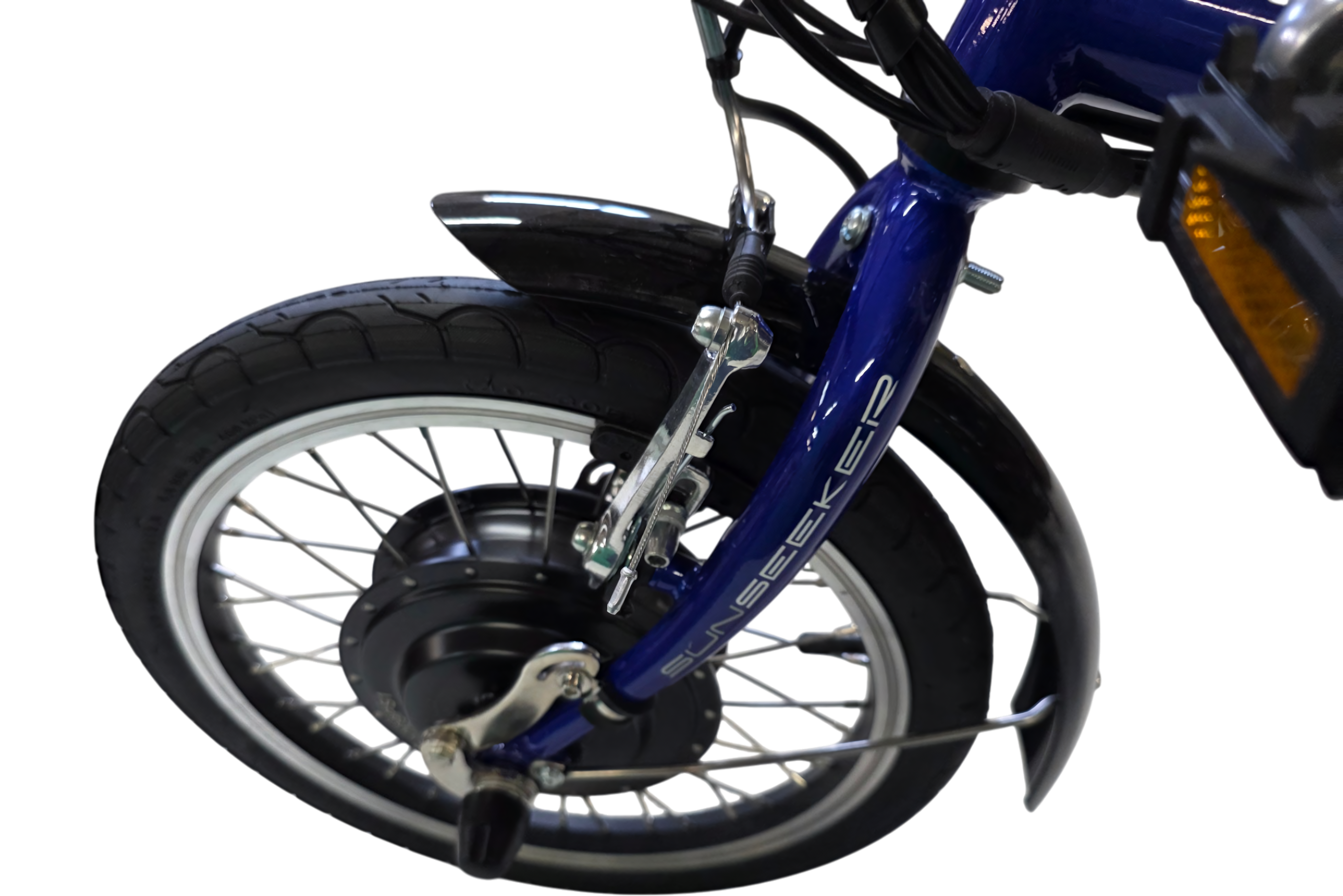

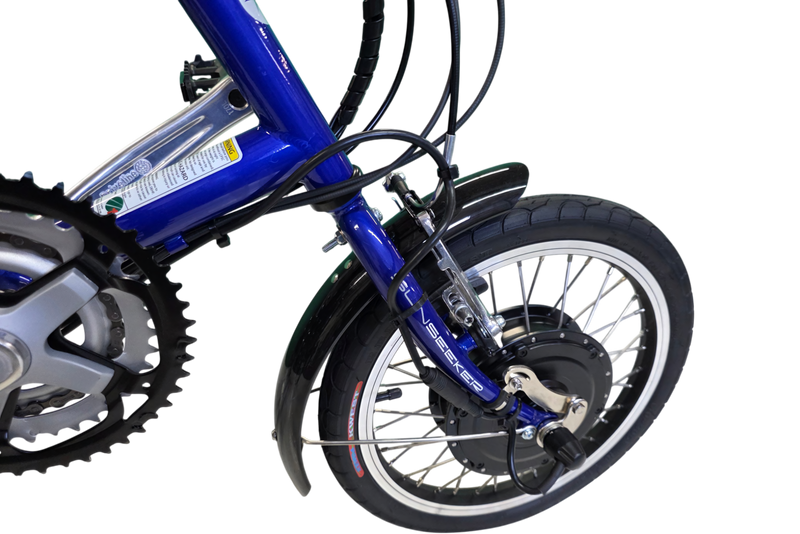

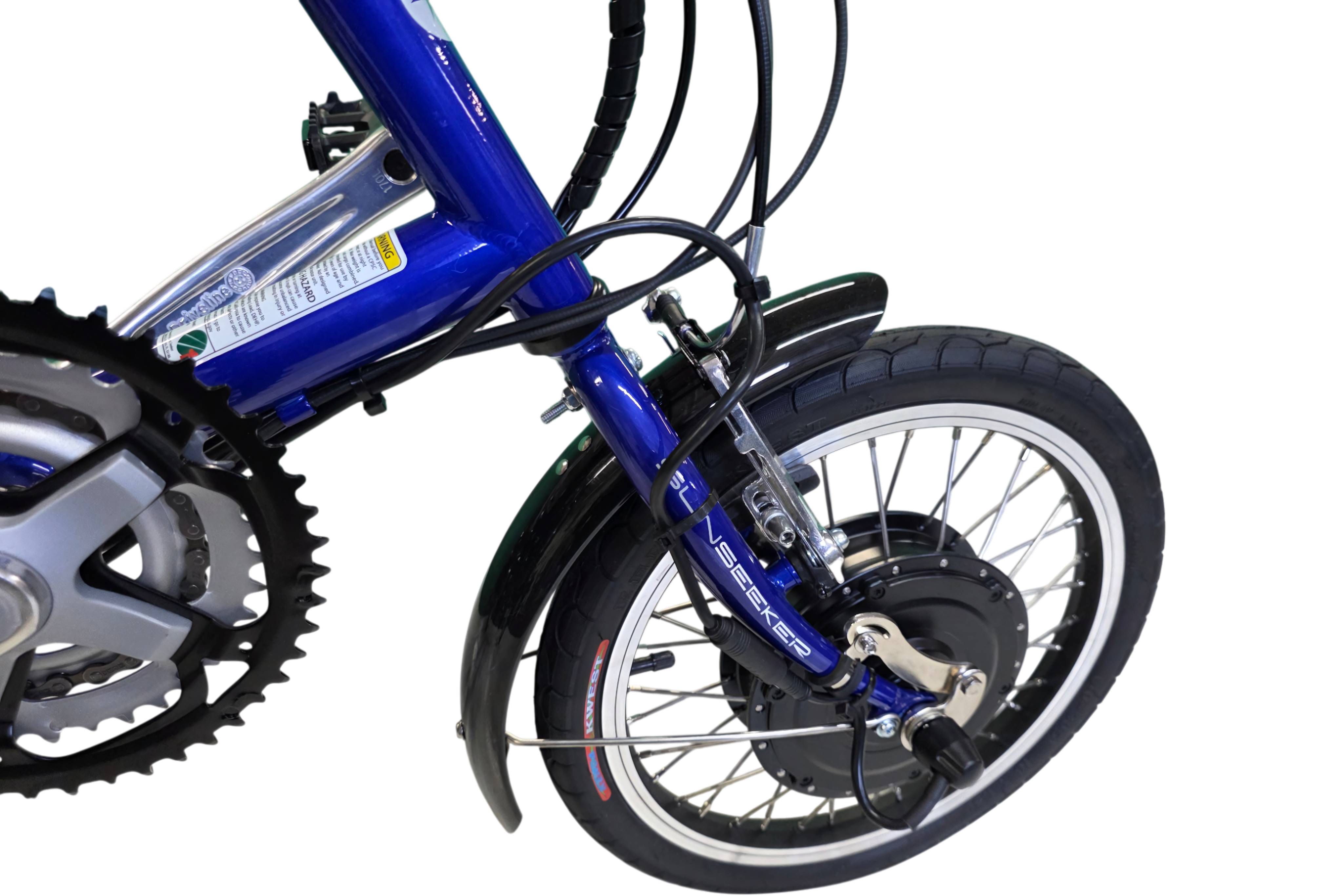

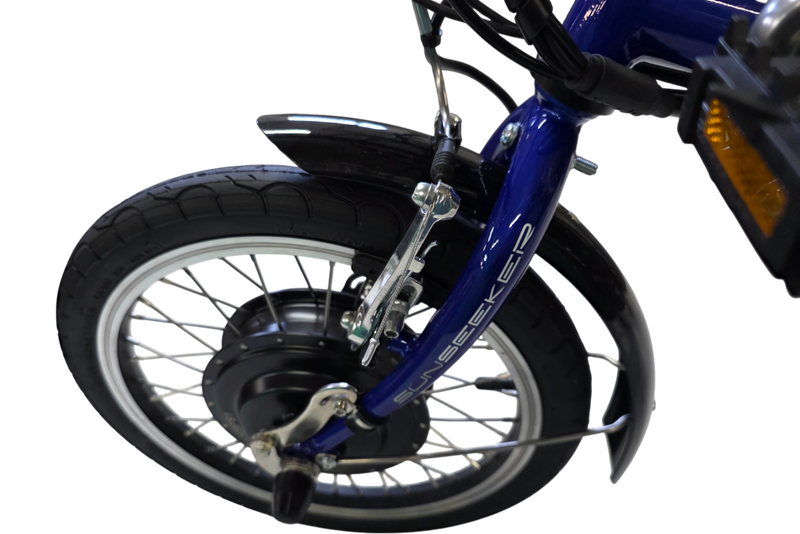

500w Front Hub Geared Motor

The 500-1000w E-BikeKit front geared hub motor features impressive 84Nm torque and a USA handbuilt wheel with single-butted 12-13 gauge spokes for durability.

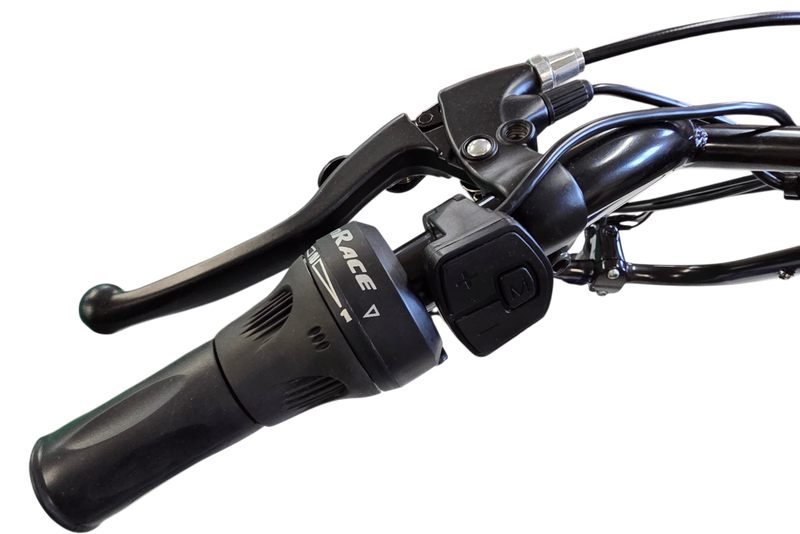

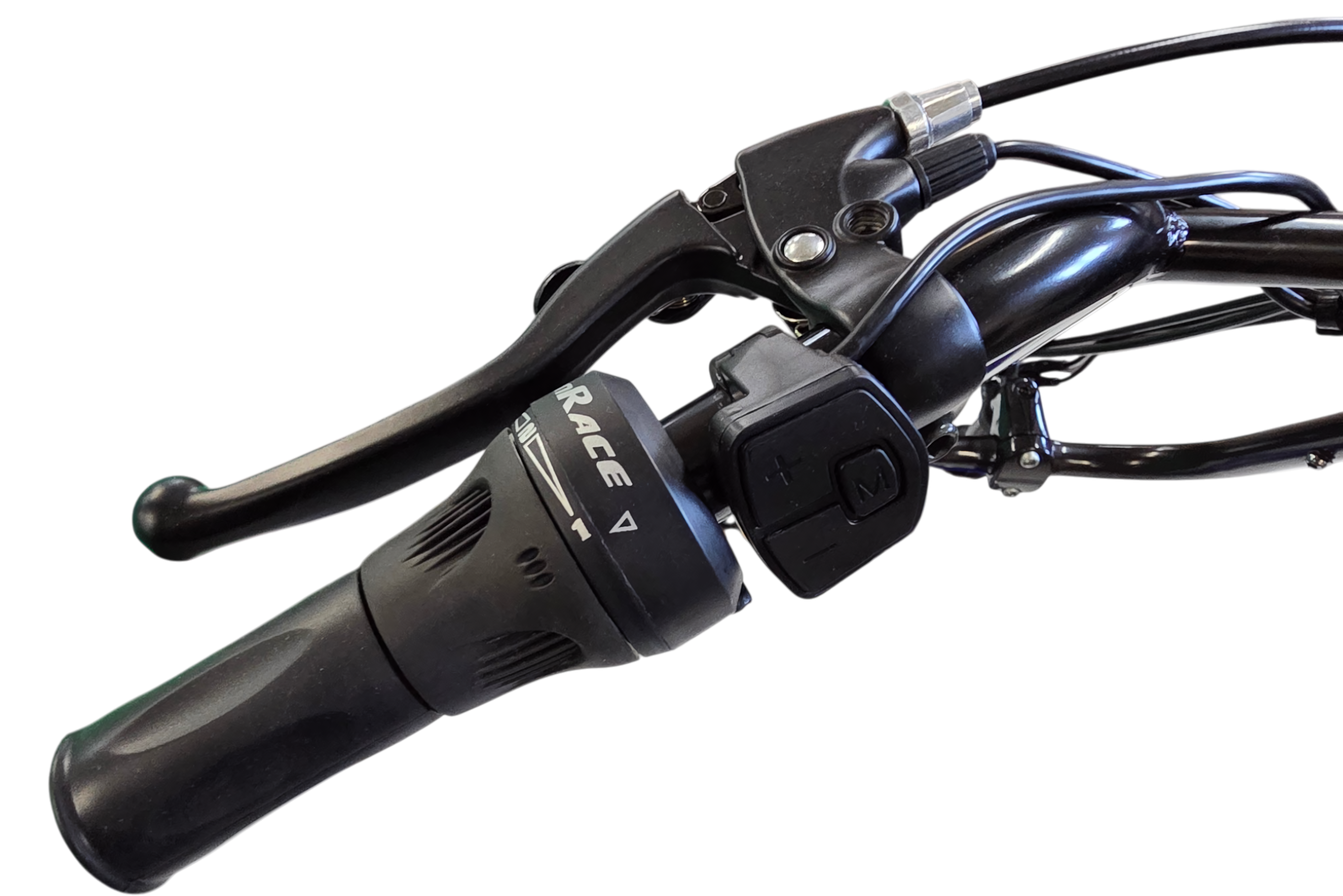

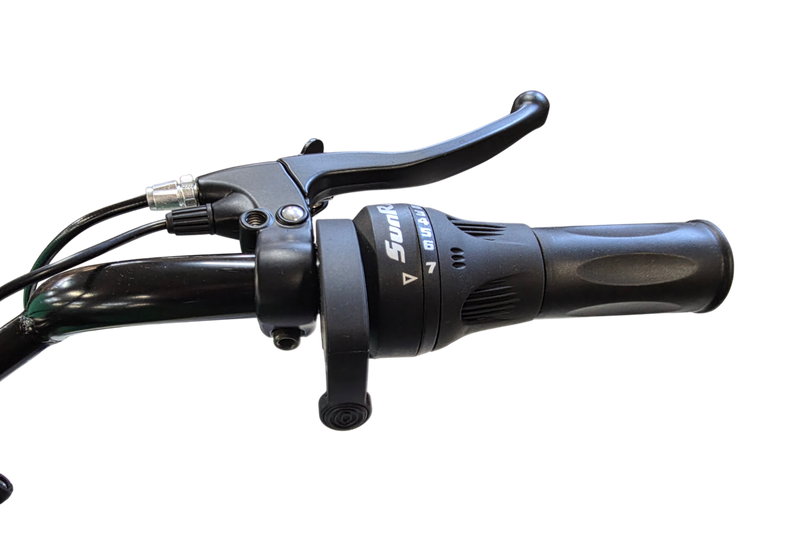

Throttle on Demand

The easy-to-use thumb throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The EZ Tri-Classic also features a pedal-assist sensor (PAS) for operation.

3x7 Gearing

The EZ Tri-Classic recumbent trike is designed for versatility and performance, featuring a 21-speed drivetrain powered by a combination of a SRAM X3 rear derailleur and a 7-speed 14-28T cassette. This setup offers a wide range of gears, ensuring smooth and efficient shifting for climbing hills or accelerating on flats. The precision of the SRAM components enhances the riding experience, making it suitable for a variety of terrains and riding styles. With this advanced gearing system, the EZ Tri-Classic stands out as a trike that can easily adapt to the demands of recreational touring, commuting, or leisure rides.

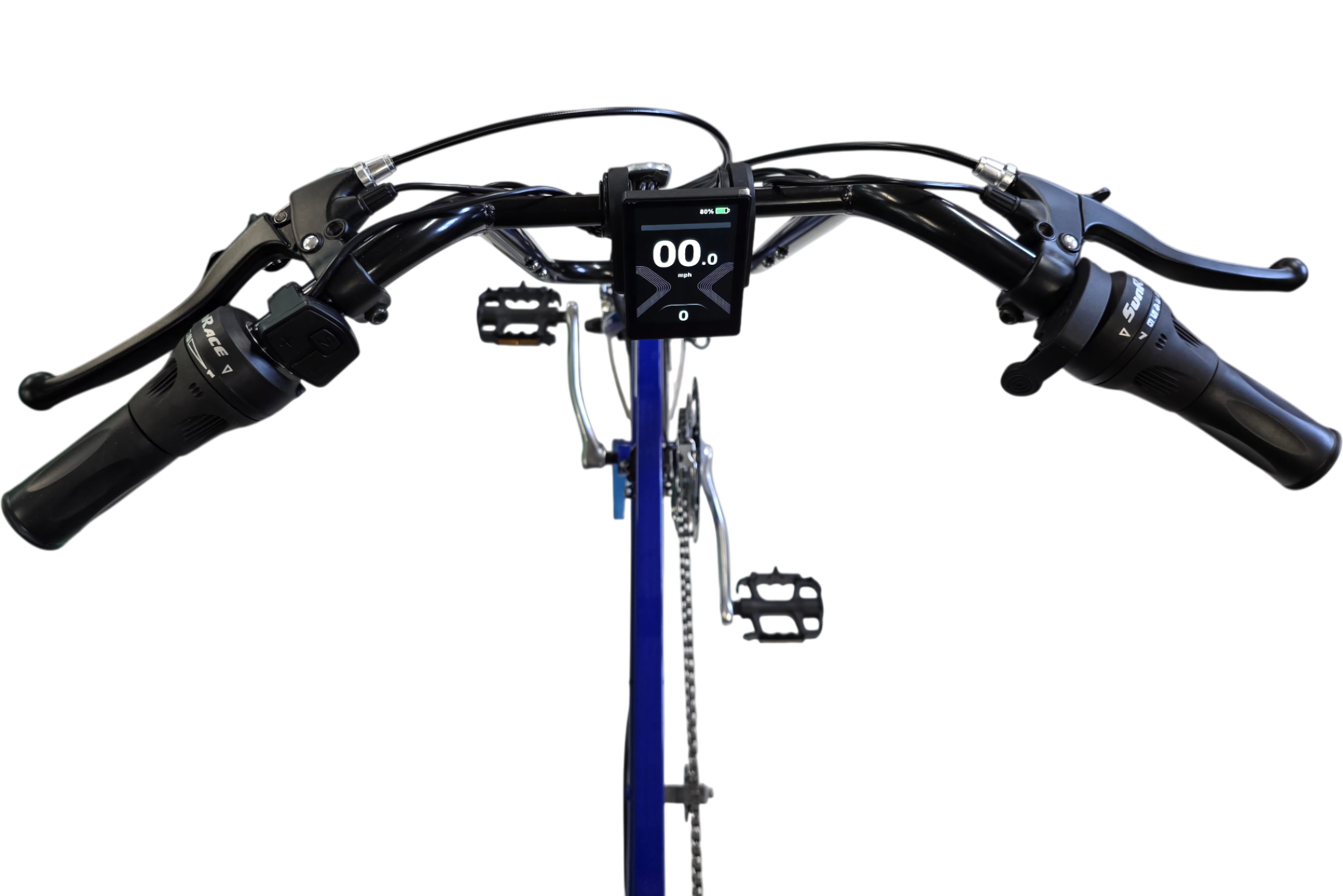

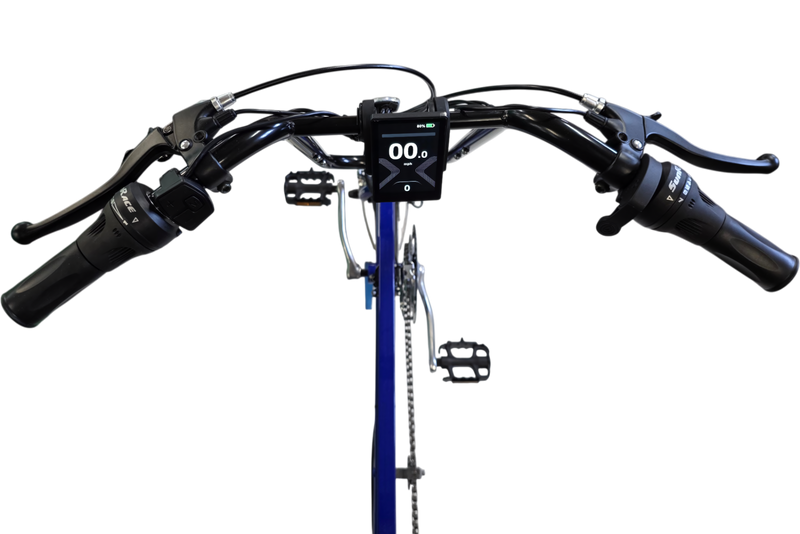

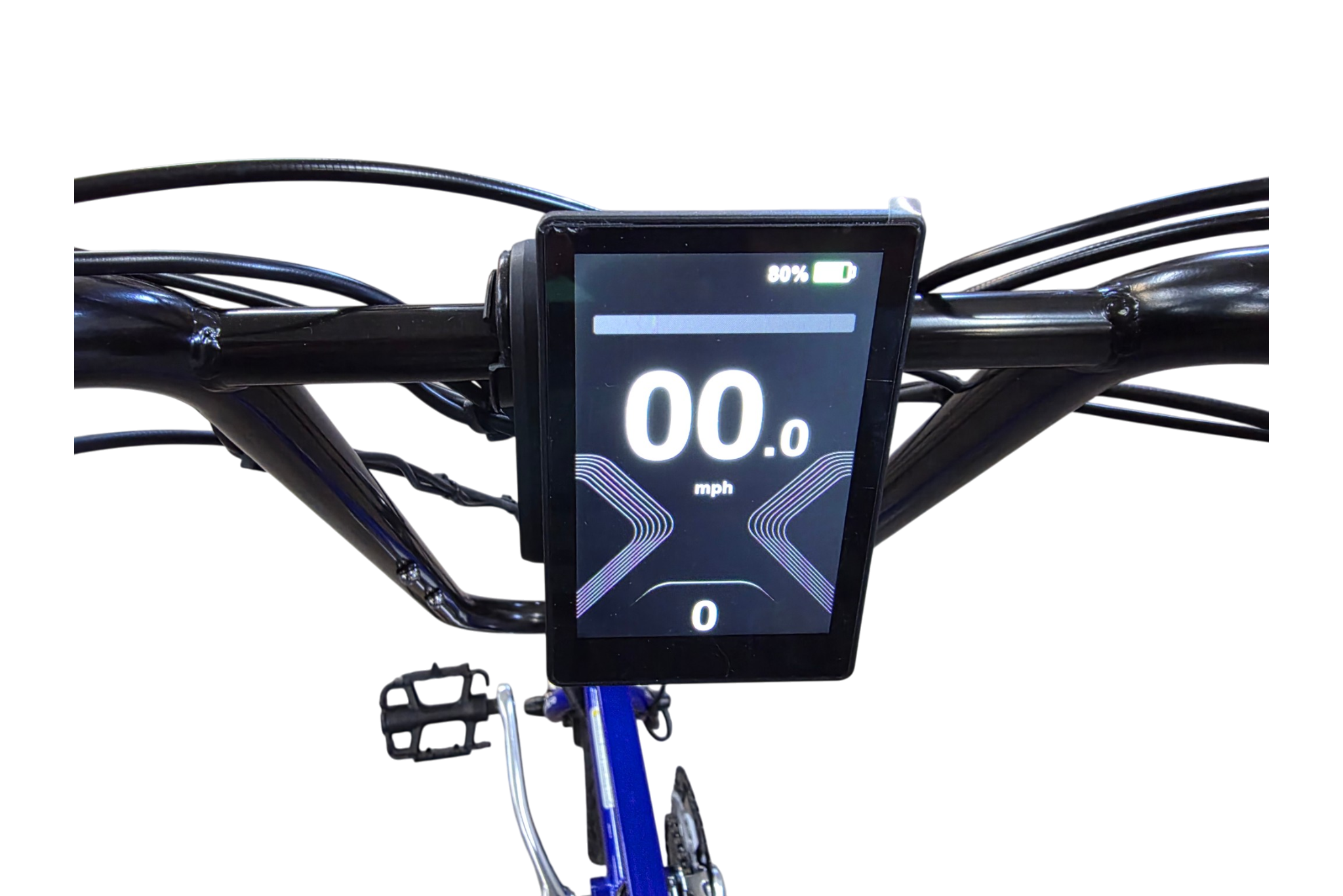

Easy-To-Read Segment Display

The Electric EZ Tri-Classic Recumbent Trike features an easy-to-read backlit display with large text mounted on the handlebars. This advanced segment color LCD includes a battery meter, speed, and trip distance readout, and programmable top speed limit.

Tri-Classic Sizing

Wheel Base

56.5" (144cm)

Overall Length

73" (185cm)

Width

30.5" (77cm)

Seat Height

22" (56cm)

Weight

56 lbs.

Weight Limit

300lbs

X-Seam

32-48"

Top Speed

26 Mph at 48v (w/ Programmable Limit)

Range

15-30 Miles

Motor

E-BikeKit Front Geared 500-1000 Watts, 84Nm, 320 Rpm (48v)

Motor Weight

9lbs 6oz

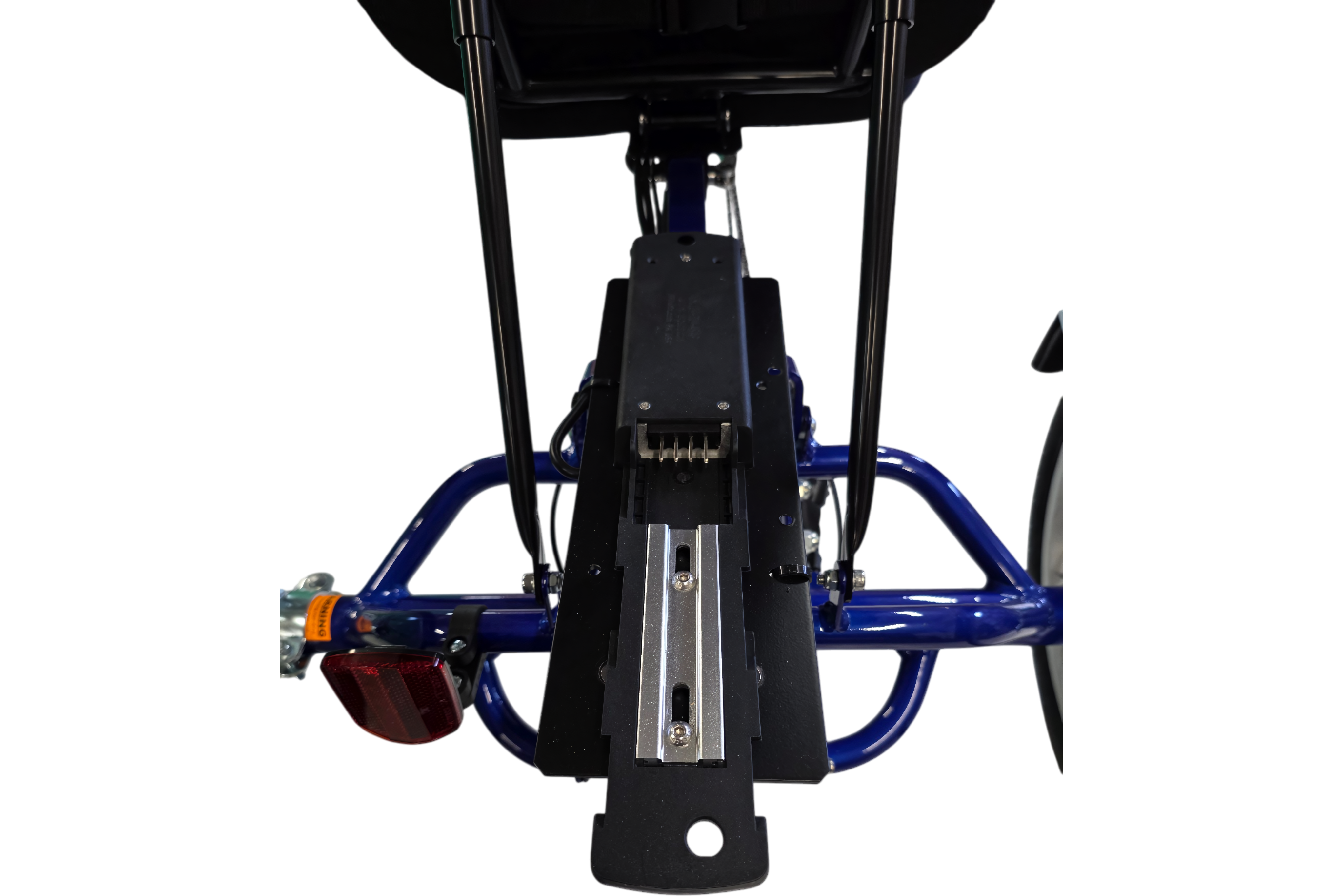

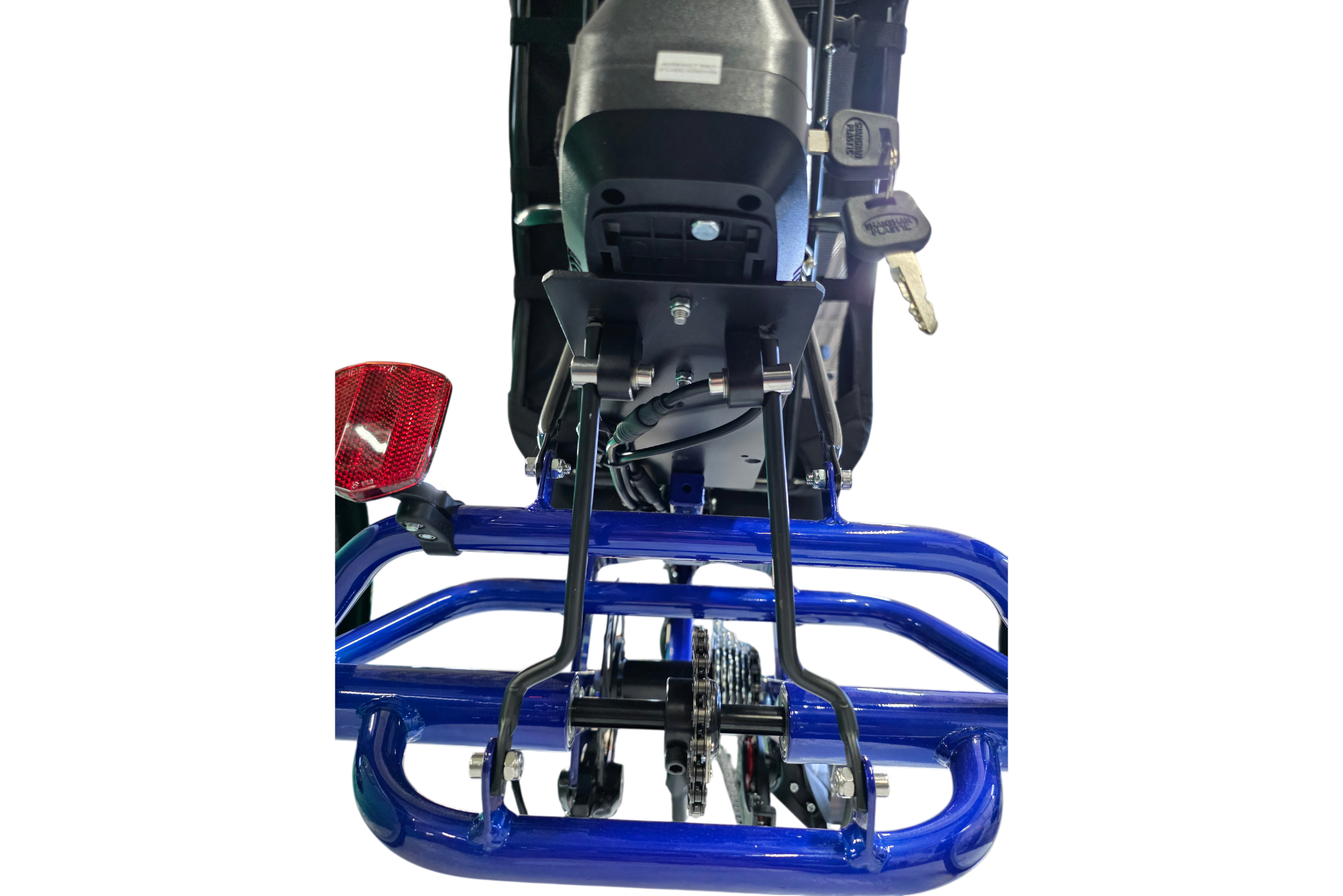

Battery

48v15Ah

Max Payload

300 lbs (Including rider and cargo)

Charge Time

5 Hours (From 0-100%)

Charger

48v3A

Drive Mode

Throttle-on-Demand, Pedal-Assist, 5-Level Speed Control, Programmable Speed, Current Limit, and Assist Level

Colors

Laser Blue and Fire Red

Intended Use

Neighborhood, Cruising, Paved Trail, and Urban

Frame Material

High Tensile Steel, TIG-Welded

Fork Details

1in High Tensile Steel, Tapered Legs

Suspension

None

Rims

16 x 1.5in Alloy, 36-Hole, Double-Wall Construction (F), 20 x 1.5-1.75in Alloy SL, 36-Hole

Spokes

(F) 12-13 Gauge, Single-Butted, Stainless Steel / (R) 14 Gauge, Stainless Steel

Tires

Kenda Kwest K193 16 x 1.5in (F), 20in x 1.5in (R) 60 PSI

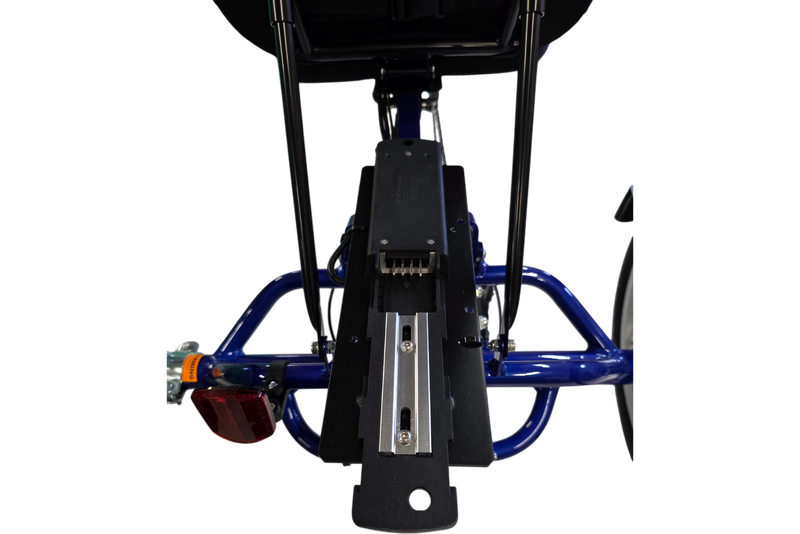

Seatpost

Rans Style Seat Slide

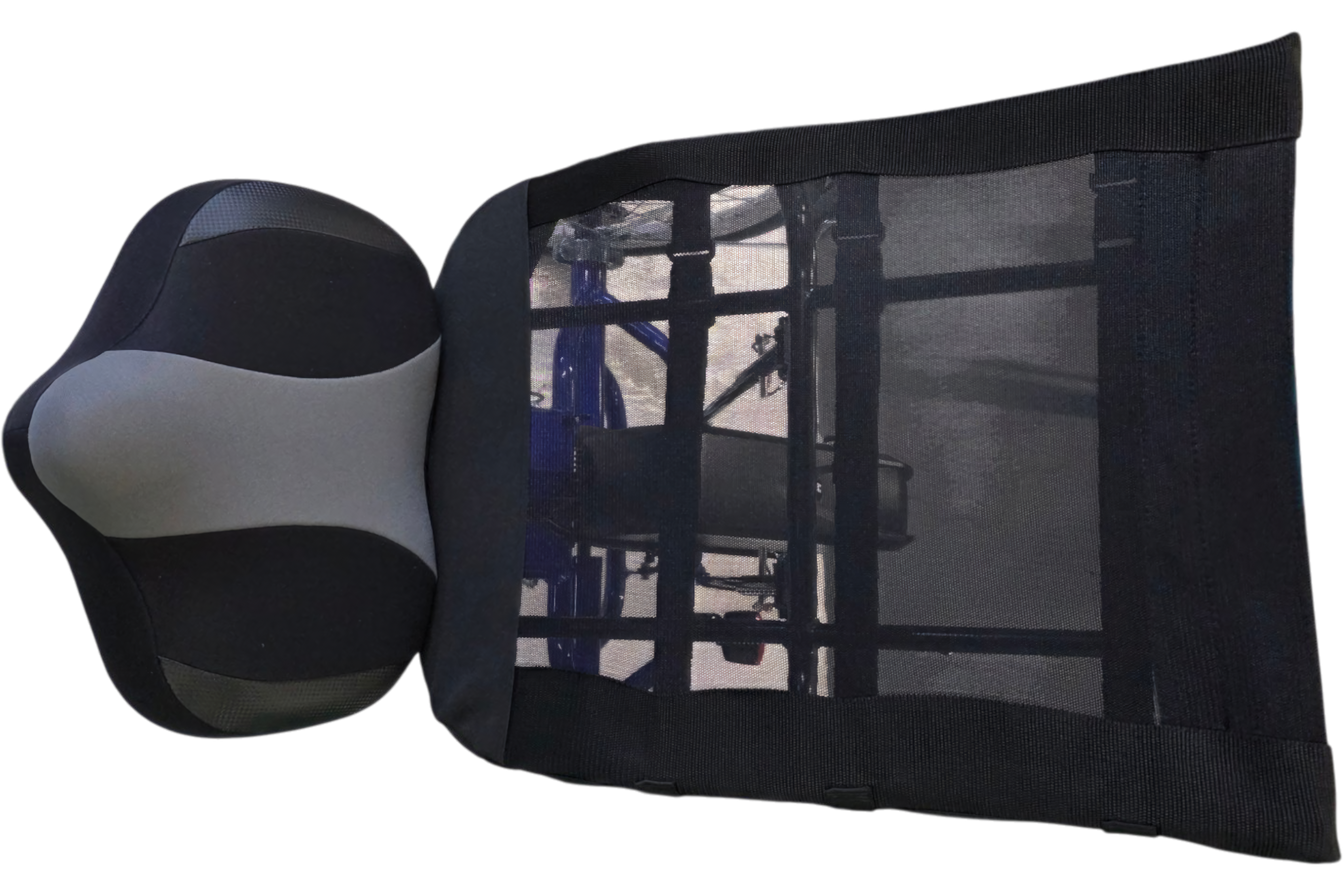

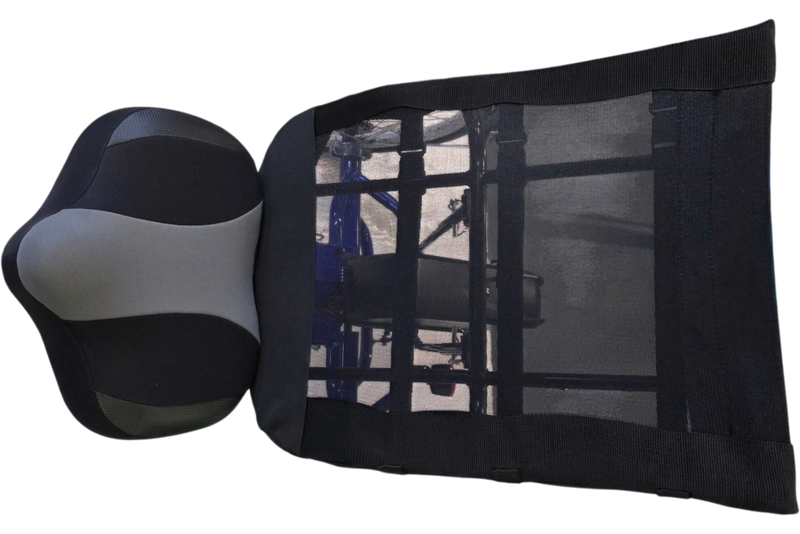

Saddle

Recumbent, with Tri-Stitch Cover

Stem

Alloy, Recumbent 22.2 x 240mm Quill x 40mm Ext, Black

Handlebars

Steel, Recumbent with Dual Bottle Mounts, 1 in - 560W x 440R, Black

Brake Levers

Includes E-Brake Shutoff and Parking Lock, One Lever for the Front Wheel, and One Lever for the Rear Wheels

Brakes

(F) Promax Alloy Linear Pull / (R) Promax DSK-400 Mechanical Disc Brake w/ 160mm Rotor

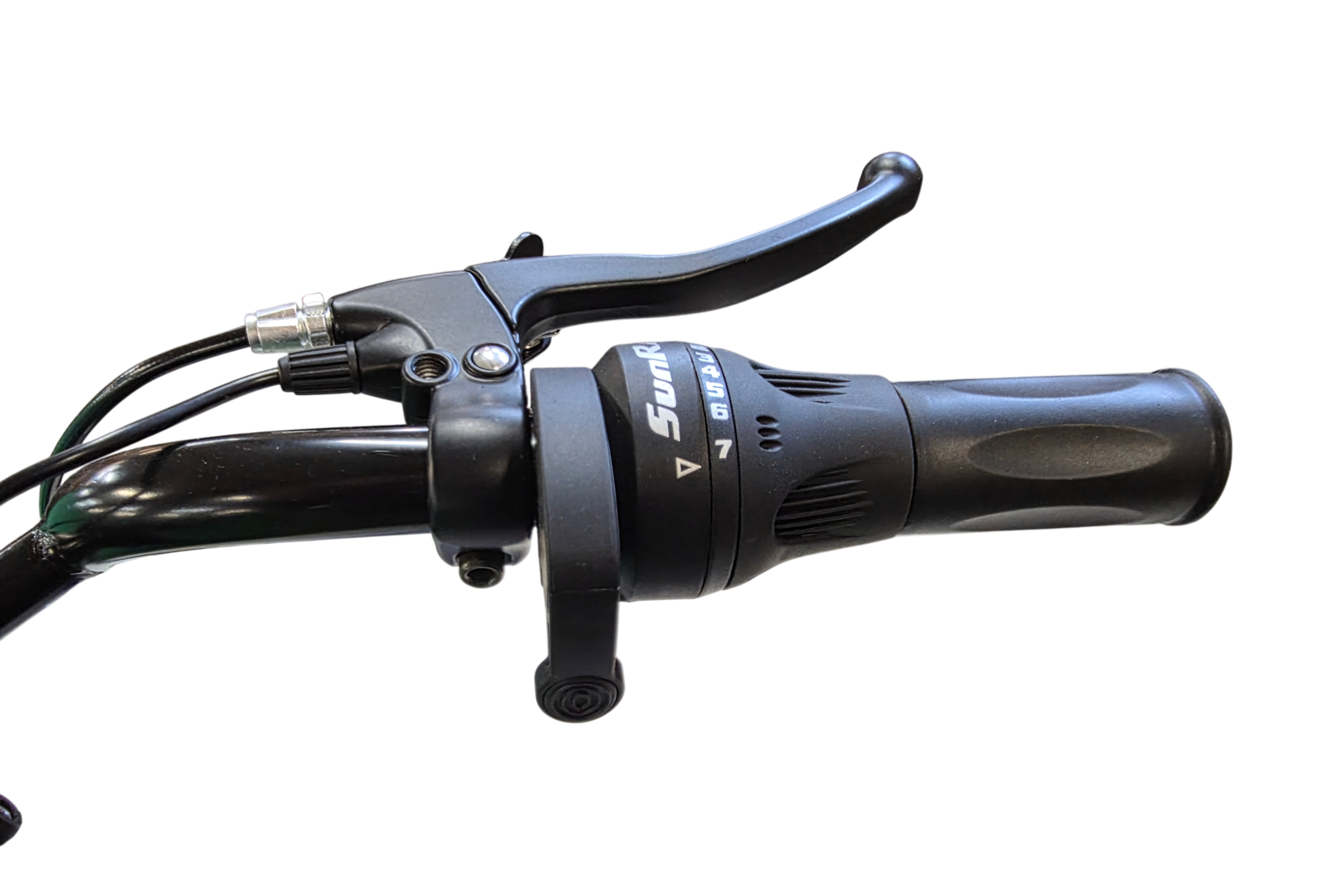

Shifter

SRAM 3.0 3-Speed & 7-Speed Grip Shifter

Grips

EBT Grips – EVA Rubber

Display

Color LCD

Front Derailleur

Microshift, DP, 31.8

Rear Derailleur

SRAM X3

Cranks

3 Piece Steel, 170mm Length w/ 48/38/28T Chainring

Pedals

Resin Body, 9/16", Black

Gearing

Sunrace 7-Speed (1x7) / 14-28t Cassette

Lights

None

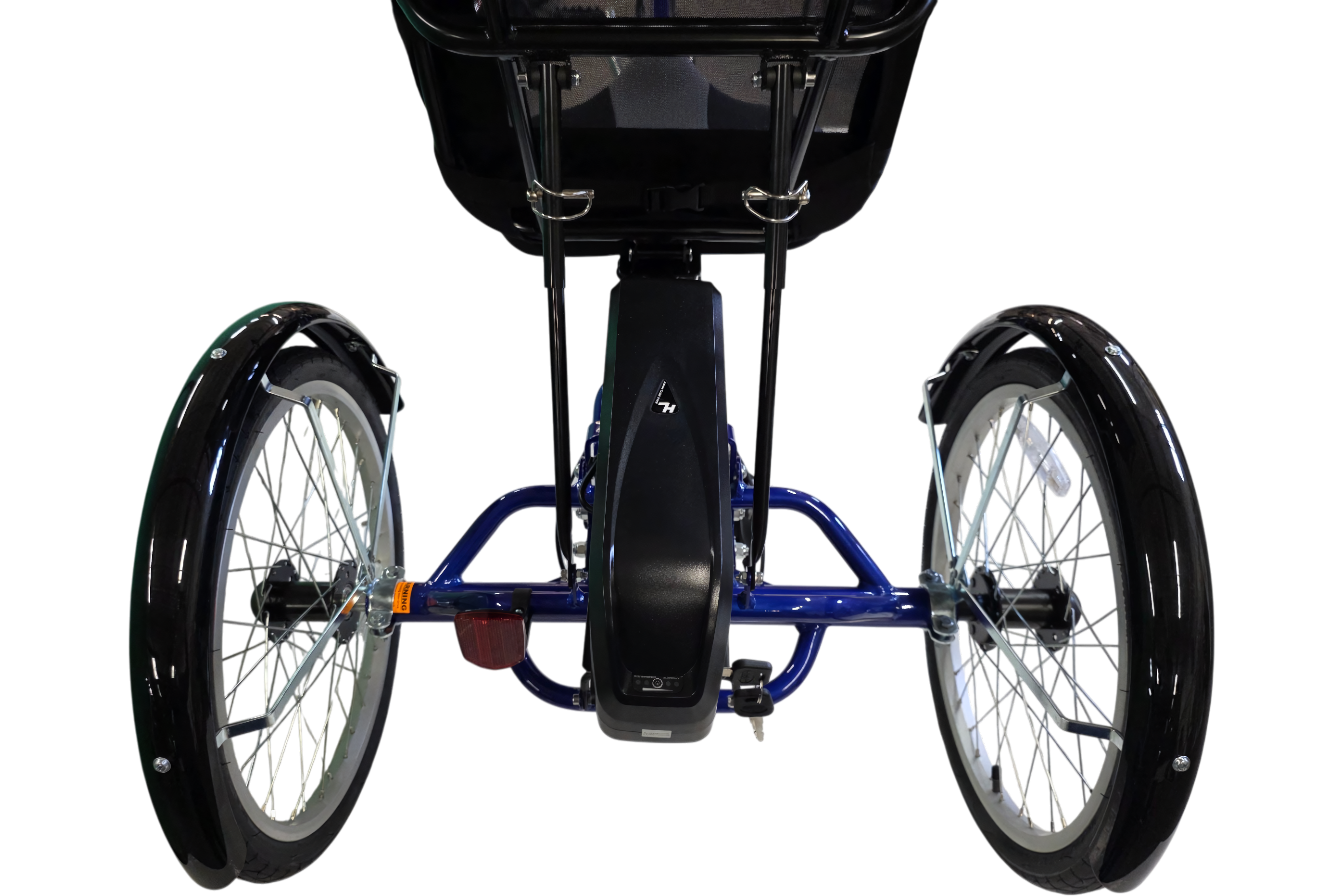

Fenders

Optional: Black High Impact Plastic / Stainless Steel Stays / Front and Rear Set

Basket

Optional: Steel Construction, Black Vinyl Coated: 14.5in Long x 9.5in Wide x 9in High

X-Seam Range

32-48 Inches

Wheelbase

56.5 Inches

Overall Length

73 Inches

Max Width

30.5 Inches

Ground Clearance

3 Inches (From the bottom of the rear derailleur to the ground)

Turning Radius

Approx. 10ft 3 1/2 Inches

Overall Weight

76lbs 8oz

Nominal Voltage

48v

Nominal Capacity

15ah

Battery Energy

720Wh

Dimensions

14"x3.5"x5"

Total Weight

10lbs 2oz

Cell Assembly

18650-3.6v-13S

Life Cycles

>= 80% Dod = 500 Cycles

Max Continuous Discharge

22.5A

BMS Protection Current

30A

Discharge Cut-Off Voltage

37.5v

Max Charge Voltage

54.6v

Inner Resistance

<= 50mΩ

Charge Time

<= 5 Hours (From 0-100%)

Operation Temperature Range

Charge: 0°C – 45°C / Discharge: -20°C – 60°C

Storage Temperature

0°C – 40°C (Extended Storage: 15°C – 25°C)

Battery Box Material

Plastic Casing

Assembled Pack Certificates

UN38.3; MSDS; RoHS; SGS

Limited Warranty

1 Year

Cells

Samsung

How to Measure Your X-Seam

At Electric Trike Store, we like to use the x-seam measurement to fit riders on recumbent trikes and inseam to fit riders on upright trikes (like the Sun Traditional).

We use this measurement to adjust your trike to fit you out of the box, but it's simple to adjust your trike later to suit your preferences. This is just a rough measurement to make things easier for you.

Alternatively, if you like reading and diagrams...

To measure your X-Seam, you'll need a tape measure, a sturdy board (like a piece of plywood or an ironing board), and an assistant to help you. If you currently ride a recumbent bike, you can use that to take the measurement instead of the board.

$250 FLAT-RATE SHIPPING

The Contiguous USA Only.

SALES TAX

Sales tax will be applied by the state where applicable.

SHIPS 100% FULLY ASSEMBLED from Our Warehouse in Bucks County, PA

The tricycle is enclosed in a heavy cardboard box and fastened to a custom-built shipping pallet. Shipping is by freight truck with liftgate service included.We use a variety of freight carriers based on your shipping destination. When the trike ships, you will receive an email from us with tracking information. The freight company will contact you before the final delivery is made in order to arrange the drop-off with you.

RETURNS & REFUNDS

The electric tricycles we offer are high-quality tricycles assembled by professionals with years of experience, and we stand behind each electric tricycle we build and ship. If, for any reason, after purchasing your electric trike, you are not 100% satisfied, simply contact customer service to discuss the return.

IMPORTANT

Buyers may return any undamaged and unused products (including fully assembled electric tricycles) within 30 days of delivery for a refund minus a 25% restocking fee (based on the condition of the returned item and at the sole discretion of EBT). ACTUAL ORIGINAL SHIPPING CHARGES (not the flat-rate $250) AND RETURN SHIPPING CHARGES (back to our facility) ARE THE SOLE RESPONSIBILITY OF THE BUYER. These return shipping costs can be significant. It is also imperative that you retain the shipping pallet and box should you decide to return a complete tricycle. If these packing items are discarded, the return will become that much more complicated and expensive.

For more information on Returns, Shipping Charges, and refunds, please visit our Terms & Conditions.

TRANSIT TIMES

Approximate transit times start once the parcel leaves our Croydon, PA warehouse. East Coast: 2-4 Business Days Midwest: 3-5 Business Days West Coast: 5-7 Business Days
With liftgate service, the truck can only lower the pallet to the ground, and they cannot deliver it inside your house. You will need to open the box and dispose of the pallet afterward.

SHIPPING SIZE

80in x 40in x 53in and 190 lbs

PLEASE NOTE

This electric Fat Trike is currently shipping without a user manual. We do offer the Fat Trike's Owner's Manual online. It's available as a PDF to download or printout. The specifications sections should also provide most of the information you'll want to know. If you have any questions, suggestions, or additional information that you would like to see posted, please let us know.
